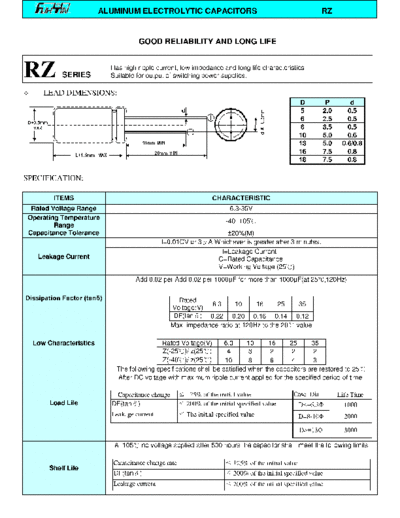

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] RZ series documenatation <<

Text preview - extract from the document

                         ALUMINUM ELECTROLYTIC CAPACITORS                                                  RZ


                                     GOOD RELIABILITY AND LONG LIFE



RZ          SERIES
                           Has high ripple current, low impedance and long life characteristics
                           Suitable for output of switching power supplies.

      LEAD DIMENSIONS:
                                                                                                    D        P        d
                                                                                                     5      2.0      0.5
                                                                                                     6      2.5      0.5
                                                                                                     8      3.5      0.5
                                                                                                    10      5.0      0.6
                                                                                                    13      5.0    0.6/0.8
                                                                                                    16      7.5      0.8
                                                                                                    18      7.5      0.8

SPECIFICATION:

         ITEMS                                                    CHARACTERISTIC
 Rated Voltage Range                                                    6.3-35V
Operating Temperature
                                                                       -40+105
        Range
Capacitance Tolerance
