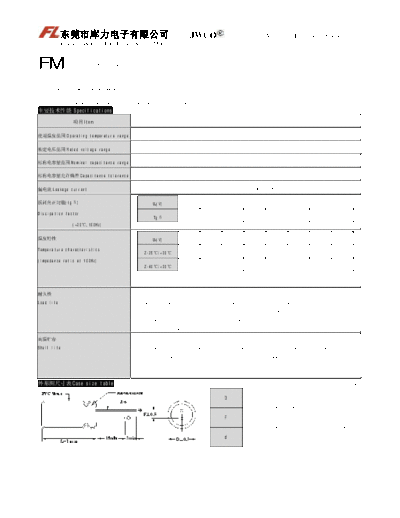

Image preview - the first page of the document
![Fulik [radial thru-hole] FM Series](/pics/5c2d995b47764.gif)
>> Download Fulik [radial thru-hole] FM Series documenatation <<
Text preview - extract from the document
JWCO Aluminum Electrolytic Capacitors
DONGGUAN FU LIK ELECTRONICS LIMIED
FM 105
1.
Extremely low leakage current,standard size.
2.
Used in TVs frequency channel conversion or weak signal import loop circuits..
Specifications
ltem Performance Characteristics
Operating temperature range -40+105
Rated voltage range 6.3100V
Nominal capacitance range 0.13300F
Capacitance tolerance 20%100Hz+20
Leakage current 10.002CV(A) 0.4A 2 2minuteWhichever is greater
(tg) UR(V) 6.3 10 16 25 35 50 63 100
Dissipation factor
Tg 0.28 0.24 0.20 0.16 0.14 0.12 0.12 0.10
(+20,100Hz)
UR(V) 6.3 10 16 25 35 50 63 100
Temperature characteristics
Z-25/+20 4 3 2 1.5 1.5 1.5 1.5 1.5
(lmpedance ratio at 100Hz)
Z-40/+20 8 6 4 4 3 3 3 3
+105 1000 16
Load life After applying rated voltage for 1000 hours at +105 and then resumed 16 hours:
