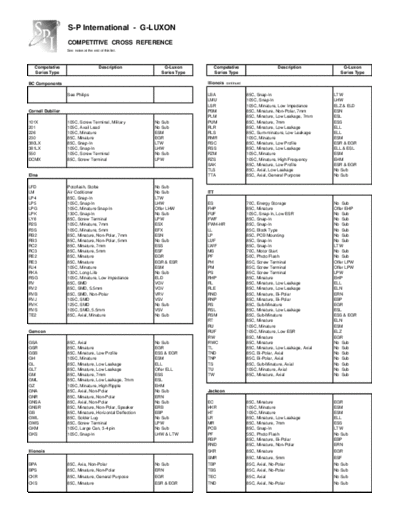

Image preview - the first page of the document
>> Download G-Luxon Cross-Reference documenatation <<
Text preview - extract from the document
S-P International - G-LUXON
COMPETITIVE CROSS REFERENCE
See notes at the end of this list.
Competative Description G-Luxon Competative Description G-Luxon
Series Type Series Type Series Type Series Type
BC Components Illionois continued
See Philips LBA 85C, Snap-In LTW
LMU 105C, Snap-In LHW
LSR 105C, Minature, Low Impedance ELZ & ELD
Cornell Dubilier PBM 85C, Minature, Non-Polar, 7mm ESN
PLM 85C, Minature, Low Leakage, 7mm ESL
101X 105C, Screw Terminal, Military No Sub PUM 85C, Minature, 7mm ESS
201 105C, Axail Lead No Sub RLR 85C, Minature, Low Leakage ELL
226 105C, Minature ESM RLS 85C, Sum-minature, Low Leakage ELL
230 85C, Minature EGR RMR 105C, Minature ESM
380LX 85C, Snap-In LTW RSC 85C, Minature, Low Profile ESR & EGR
381LX 105C, Snap-In LHW RSS 85C, Minature, Low Leakage ELL & ESL
550 105C, Screw Terminal No Sub RZM 105C, Minature ESM
DCMX 85C, Screw Terminal LPW RZS 105C, Minature, High Frequency EHM
SAK 85C, Minature, Low Profile ESR & EGR
TLS 85C, Axial, Low Leakage No Sub
Elna TTA 85C, Axial, General Purpose No Sub
LFD Potoflash, Stobe No Sub
LM Air Coditioner No Sub ITT
LP4 85C, Snap-In LTW
LP5 105C, Snap-In LHW ES 70C, Energy Storage No Sub
LPG 105C, Minature Snap-In Offer LHW FHP 85C, Minature Offer EHP
LPK 130C, Snap-In No Sub FUF 105C, Snap-In, Low ESR No Sub
LY6 85C, Screw Terminal LPW FWF 85C, Snap-In No Sub
R2S 105C, Minature, 7mm ESX FWH-HR 85C, Snap-In No Sub
R3S 105C, Minature, 5mm EFX LL 85C, Block Type No Sub
RB2 85C, Minature, Non-Polar, 7mm ESN LP 85C, PCB Mounting No Sub
RB3 85C, Minature, Non-Polar, 5mm No Sub LUF 85C, Snap-In No Sub
RC2 85C, Minature, 7mm ESS LWF 85C, Snap-In LTW
RC3 85C, Minature, 5mm ESF MS 70C, Motor Start No Sub
RE2 85C, Minature EGR PF 50C, Photo Flash No Sub
RE3 85C, Minature EGR & ESR PH 85C, Screw Terminal Offer LPW
RJ4 105C, Minature ESM PM 85C, Screw Terminal Offer LPW
RKA 130C, Long Life No Sub PS 85C, Screw Terminal LPW
RSG 105C, Minature, Low Impedance ELD RHP 85C, Minature EHP
RV 85C, SMD VGV RL 85C, Minature, Low Leakage ELL
RV2 85C, SMD, 5.5mm VGV RLE 85C, Minature, Low Leakage ELN
RVB 85C, SMD, Non-Polar VRV RND 85C, Minature, Bi-Polar ERN
RVJ 105C, SMD VSV RNP 85C, Minature, Bi-Polar EBP
RVK 125C, SMD No Sub RS 85C, Sub-Minature EGR
RVS 105C, SMD, 5.5mm VSV RSL 85C, Minature, Low Leakage ESL
TE2 85C, Axial, Minature No Sub RSM 85C, Sub-Minature ESS & EGR
RT 85C, Minature ELN
RU 105C, Minature ESM
Gemcon RUF 105C, Minature, Low ESR ELZ
RW 85C, Minature EGR
GSA 85C, Axial No Sub RWC 85C, Minature No Sub
GSR 85C, Minature EGR TL 85C, Minature, Low Leakage, Axial No Sub
GSB 85C, Minature, Low Profile ESS & EGR TND 85C, Bi-Polar, Axial No Sub
GH 105C, Minature ESM TNP 85C, Bi-Polar, Axial No Sub
GL 85C, Minature, Low Leakage ELL TS 85C, Sub-Minature, Axial No Sub
GLT 85C, Minature, Low Leakage Offer ELL TU 105C, Minature, Axial No Sub
GM 85C, Minature, 7mm ESS TW 85C, Minature, Axial No Sub
GML 85C, Minature, Low Leakage, 7mm ESL
GZ 105C, Minature, High Ripple EHM
GNA 85C, Axial, Non-Polar No Sub Jackcon
GNR 85C, Minature, Non-Polar ERN
GNSA 85C, Axial, Non-Polar No Sub EC 85C, Minature EGR
GNSR 85C, Minature, Non-Polar, Speaker ERB HKR 105C, Minature ESM
GB 85C, Minature, Horizontal Deflection EBP HT 105C, Minature ESM
GWL 85C, Solder Lug No Sub LR 85C, Minature, Low Leakage ELL
GWS 85C, Screw Terminal LPW MR 85C, Minature, 7mm ESS
GKM 105C, Large Can, 3-4 pin No Sub PCB 85C, Snap-In LTW
GKS 105C, Snap-In LHW & LTW PF 55C, Photo Flash No Sub
RBP 85C, Minature, Bi-Polar EBP
RND 85C, Minature, Non-Polar ERN
Illionois SKR 85C, Minature EGR
SMR 85C, Minature, 5mm ESF
BPA 85C, Axia, Non-Polar No Sub TBP 85C, Axial, No-Polar No Sub
BPS 85C, Minature, Non-Polar ERN TBS 85C, Axial, No-Polar No Sub
CKR 85C, Minature, General Purpose EGR TEC 85C, Axial No Sub
CKS 85C, Minature ESR & EGR TND 85C, Axial, No-Polar No Sub
S-P International - G-LUXON
COMPETITIVE CROSS REFERENCE
See notes at the end of this list.
Competative Description G-Luxon Competative Description G-Luxon
Series Type Series Type Series Type Series Type
Komatsu Denki Panasonic
BPM 85C, Minature, Bi-Polar ERB EB - A 105C, Minature, Long Life offer EFM
BPNR 85C, Minature, Bi-Polar No Sub EX - TS 105C, Snap-In, VDE No Sub
BPNT 85C, Minature, Bi-Polar, Axial No Sub FA - A 105C, Minature, Low Impedance ELZ & ELD
BPRH 85C, Minature, Bi-Polar EBP FB - A 105C, Minature, Low Impedance ELZ & ELY
BPST 85C, Minature, Bi-Polar, Axial No Sub FC - A 105C, Minature, Low Impedance ELY
L 85C, Solder Lug No Sub FC - V 105C, SMD, Low ESR No Sub
LG 85C, Snap-In LTW GA - A 105C, Minature VSM
LGE 105C, Snap-In LHW GA - A - Bi-Polar 105C, Minature, Bi-Polar ERX
LP 85C, PC Board Mount No Sub GNH 105C, Screw Terminal No Sub
SL 85C, Screw Terminal LPW GTA 85C, Screw Terminal No Sub
SM 85C, Minature EGR GUE 85C, Screw Terminal offer LPW
SME 105C, Minature ESM GUP 85C, Screw Terminal offer LPW
ST 85C, Minature, Axial No Sub GYU / GH 85C, Screw Terminal LPW
STE 105C, Minature, Axial No Sub HA - TS 105C, Snap-In LHW
TRZ 105C, Minature, Low ESR EHM HA - V 105C, SMD, 1000hr VSV
HB - TS 105C, Snap-In, Minature No Sub
HB - V 105C, SMD, 2000hr offer VSV
Mallory HFQ - A 105C, Minature, Low Impedance ELZ & ELD
KA - A 85C, Minature, 7mm ESS
CGR 85C, Screw leads LPW KA - A - Bi-Polar 85C, Minature, 7mm, Bi-Polar ESN
CGS 85C, Screw leads LPW KS - A 85C, Minature, 5mm ESF
LP 105C, Snap-In LHW KS - A - Bi-Polar 85C, Minature, 5mm, Bi-Polar No Sub
LPX Snap-In, Standard 85C LTW M-A 85C, Minature EGR
TC 85C, Axial Lead No Sub MC - TS 105C, Snap-In, Over Voltage No Sub
VPR 105C, Minature ELM & ESM MC - V 85C, SMD, Low Profile offer VGV
VTE 85C, Minature, Low Leakage ELL MD - TS 105C, Snap-In, Minature, Over Voltage No Sub
VTL 85C, Minature EGR MG - A 85C, Minature, High Ripple offer ELM
MH - A 105C, Minature, Long Life ESM
NHG - A 105C, Minature ESM
Marcon S-V 85C, SMD VGV
SU - A 85C, Minature, Bi-Polar ERN
DSM 85C, Minature EGR TA - V 125C, SMD No Sub
TB - V 125C, SMD No Sub
U-A 85C, Minature, replaced by M - A EGR
NIC UP - TS 85C, Snap-In LTW
XB - TS 105C, Snap-In, Long Life offer LHW
NACE 85C, SMD VGV
NACZ 105C, SMD VZV
NLE 85C, Minature, 7mm, Low Leakage ESL Philips
NREL 85C, Minature ESR
NRE-S 85C, Minature, 7mm ESS 2222-013-xxxxx 85C, Minature, Low Leakage ELL
NRLE 85C, Minature EGR 2222-014-xxxxx 85C, Axial + Radial formed Offer EGR
NRLM 85C, Snap-In LTW 2222-021-xxxxx 85C, Axial + Radial formed Offer EGR
NRSA 85C, Minature EGR 2222-030-xxxxx 85C, Axial + Radial formed Offer EGR
NRSZ 105C, Low ESR, Minature EHM 2222-031-xxxxx 85C, Axial + Radial formed Offer EGR
NRWA 105C, Minature ESM 2222-032-xxxxx 85C, Axial + Radial formed Offer EGR
NRWS 105C, Minature ESM & ESX 2222-033-xxxxx 85C, Axial + Radial formed Offer EGR
NSR 85C, Minature, 5mm ESF 2222-035-xxxxx 85C, Minature EGR
2222-036-xxxxx 85C, Minature EGR
2222-037-xxxxx 85C, Minature EGR
Nichicon 2222-041-xxxxx 85C, Axial + Radial formed Offer EGR
2222-042-xxxxx 85C, Axial + Radial formed Offer EGR
LGQ 105C, Snap-in LHW 2222-043-xxxxx 85C, Axial + Radial formed Offer EGR
LLK 85C, Snap-In LTW 2222-050-xxxxx 85C, Solder tap or PCB Pin Offer LTW
LLQ 85C, Snap-in LTW 2222-051-xxxxx 85C, Solder tap or PCB Pin Offer LTW
TVX 85C, Minature, Axial No Sub 2222-052-xxxxx 85C, Solder tap or PCB Pin No Sub
UKL 85C, Low leakage, Minature ELL 2222-053-xxxxx 85C, Solder tap or PCB Pin No Sub
UKL......ANA 105C, Low Leakage, Minature ELX 2222-058-xxxxx 105C, Snap-In LHW
UPJ 105C, Minature, Low Impedance EHM 2222-065-xxxxx 85C, Axial No Sub
UPL 105C, Minature, Low Impedance, Long Life ELY 2222-114-xxxxx 85C, Screw Terminal LPW
UPM 105C, Minature, Low Impedance, Long Life ELD 2222-115-xxxxx 85C, Screw Terminal LPW
USL 85C, 7mm, Minature, Low Leakage ESL 2222-116-xxxxx 105C, Minature ESM
USR 85C, 7mm, Minature ESS 3847 105C, Snap-in LHW
UUR 85C, SMD, High CV Offer VGV RHT165 125C, Minature EAM
UVP 85C, Non-Polar, Minature ERN RLL116 105C, Minature ESM
UVR 85C, Minature EGR RML048 105C, Minature, Long Life Offer ESM
UVX 85C, Minature EGR RSH044 85C, Minature EGR
UVZ 105C, Minature No Sub RSM037 85C, Minature EGR
UWX 85C, SMD VGV RVI136 105C, Low Impedance, High Ripple ELY
Nitsuko Rubycon
MK 85C, Minature EGR AXF 105C, Snap-in LHW
S-P International - G-LUXON
COMPETITIVE CROSS REFERENCE
See notes at the end of this list.
Competative Description G-Luxon Competative Description G-Luxon
Series Type Series Type Series Type Series Type
Rubycon continued Sprague continued
AXW 105C, Small diameter for Pwr Suply No Sub 513D 85C, Minature EGR
BXA 105C, Long Life - 8,000-10,000 hours Offer EFM 515D 85C, Minature EGR
JXA 105C, Low Impedance ELD 516D 85C, Axial No Sub
JXB 105C, Low Impedance, Minaturized No Sub
LSQ 85C, Screw terminal LPW
LSW 105C, Screw terminal No Sub Teapo
MH5 105C, 5mm high EFX
MH7 105C, 7mm high ESX HD 85C or 105C No Sub
MS5 85C, 5mm high ESF LG 105C, Snap-In LHW
MS7 85C, 7mm high ESS LH 85C, Snap-In LTW
MXC 105C, Snap-in, Minaturized No Sub LX 85C or 105C, Snap-In LHW
MXR 105C, Snap-in LHW PC 85C or 105C, Screw Terminal LPW
NA 85C, Bi-Polar ERN RL 55C, Motor Start No Sub
NEV 85C, SMD, Bi-Polar VRV S5 105C, 5mm high EFX
NW 85C, Bi-Polar ERN SB 105C, Low Leakage No Sub
NW5 85C, Bi-Polar, 5mm hight No Sub SC 105C, Low Impedance, Low ESR ELZ
NW7 85C, Bi-Polar, 7mm hight ESM SD 105C, Low Impedance, Low ESR ELZ
NXA 105C, Bi-Polar, Minatureized Offer ERX SE-K 105C, Minature ESM
PK 85C, Ultra Miniaturized, General Purpose No Sub SG 105C, High Voltage, Long Life Offer EHM
PX 105C, Ultra Miniaturized, General Purpose No Sub SH 105C, Minature ESM
REV 85C, SMD, Standard V Chip VGV SK 85C, Minature EGR
RGV 105C, SMD, Long Life V Chip VSV SN 105C, Non-Polar ERX
RZV 105C, SMD, Low Impedance V Chip VZV SR 70C, Bi-Polar EBP
SSP 105C, Standard General Purpose ESM SS 105C, 7mm high ESX
TWP 85C, Minature, Auxiliary Terminal Offer EHP SX 105C, Low Impedance, Low ESR, Long Life EFM
TWPS 85C, Minature, Auxiliary Terminal Offer EHP
TWSS 85C, Standard General Purpose EGR
USC 85C, Snap-in, Minaturized No Sub Tosin
USP 85C, Snap-in LTW
USR 85C, Snap-in LTW 3S 85C, Minature, 5mm high ESF
WA 85C, Minature, Low Profile ESR & EGR 3SBP 85C, Non-Polar, 5mm high No Sub
WXA 105C, Minature, Low Profile No Sub HMG 105C, Minature ESM
YK 85C, General Purpose EGR HS 105C, Minature, 5mm high EFX
YXA 105C, General Purpose ESM HSS 105C, Minature, 7mm high ESX
YXF 105C, Low Impedance, Long Life ELZ LG2A 85C, Snap-In LTW
YXG 105C, High Ripple, Long Life EFM LG2B 105C, Snap-In LHW
ZA 105C, Minature, Low Impedance No Sub LG2SA 85C, Snap-In, Minature No Sub
ZL 105C, Minature, High Ripple, Low Impedance ELU LG2SB 105C, Snap-In, Minature No Sub
TSE 85C, Minaturized ESR
TSG 85C, Minature EGR
Samsung TSH 105C, Minature ESM
TSJ 85C, Minature, 7mm high ESS
BP-H 85C, Minature, Bi-Polar EBP TSL 85C, Minature, Low Leakage ELL
BP-S 85C, Minature, Bi-Polar ERB TSM 85C, Minature EGR
GH 85C, Minature EGR TSMBP 85C, Non-Polar ERN
GL 85C, Minature EGR TSS 85C, Minature, 7mm high ESS
LB 85C, Solder Lug Terminal No Sub TSSBP 85C, Non-Polar, 7mm high ESN
LN 85C, Minature, Low Leakage ELL
ML 85C, Minature EHP
MS 70C, Solder Lug Terminal, Motor Start No Sub Transcend
NP-D 85C, Minature, Bi-Polar ESN
PR 85C, PC Board Terminal No Sub GA 105C, Minature, Axial No Sub
SM 85C, Snap-In LTW GR 105C, Minature ESM
SS 85C, Minature EGR LGK 85C, Snap-In LTW
LGL 85C, Solder Lug Terminal No Sub
LL 85C, Minature, Low Leakage ELL
Sanyo NA 85C, Minature, Non-Polar, Axial No Sub
NR 85C, Minature, Non-Polar ESN
HC 85C, Minature EGR SA 85C, Minature, Axial No Sub
MV 105C, Minature EFX SR 85C, Minature EGR
SS 85C, Minature, 7mm high ESS
Siemens
U.C.C.
85049 85C, Minature EGR
EX 105C/125C, Minature, Low Impedance ELZ, ELY
GX 130C, Minature, Low Impedance, Long Life No Sub
Sprague GXC 130C, Minature, Low Impedance, Long Life No Sub
KFR 105C, Minature ESM
80D 85C, Snap-In LTW KMA 105C, Minature, 7mm high ESX
501D 85C, Axial No Sub KMABP 105C, Minature, Bi-Polar, 7mm high ESP
503D 85C, Minature EGR KME 105C, Minature ESM
511D 105C, Minature ESM KMEBP 105C, Minature, Bi-Polar ERX
S-P International - G-LUXON
COMPETITIVE CROSS REFERENCE
See notes at the end of this list.
Competative Description G-Luxon Competative Description G-Luxon
Series Type Series Type Series Type Series Type
U.C.C. continued Unicon continued
KMF 105C, Minature, Low Impedance ELZ MSM 85C, Minature, 5mm high ESF
KMG 105C, Minature ESM MTM 105C, SMD VSV
KMH 105C, Snap-In LHW MXM 85C, SMD VGV
KRE 105C, Minature, 5mm high EFX PBM 85C, Minature, Bi-Polar, 7mm high ESN
KREBP 105C, Minature, Bi-Polar, 5mm high No Sub PGM 105C, Minature, 7mm high ESX
KRF 105C, Minature, High Value No Sub PLM 85C, Minature, Low Leakage, 7mm high ESL
KRG 105C, Minature ESX & ESM PSM 85C, Minature, 7mm high ESS
KRL 105C, Minature, 5mm or 7mm high ESH PUM 85C, Minature, 7mm high ESS
KSABP 105C, Minature, Bi-Polar EBX TBM 85C, Minature EBP
LLA 85C, Minature, Low Leakage ELL TSM 85C, Minature ELN
LX 105C, Screw Terminal LPW TVM 85C, Minature No Sub
LXA 105C, Screw Terminal LPW USM 85C, Minature EGR
LXE 105C, Minature, Low Impedance ELZ UST 85C, Minature, Axial No Sub
LXF 105C, Minature, Low Impedance ELZ, ELY
LXG 105C, Snap-In, Long Life No Sub
MF 85C, SMD No Sub Yageo
MFBP 85C, SMD, Bi-Polar No Sub
MFK 105C, SMD No Sub See Teapo
MFKBP 105C, SMD, Bi-Polar No Sub
MFX 105C, SMD No Sub
MV 85C, SMD VGV
MVBP 85C, SMD, Bi-Polar VRV Notes:
MVK 105C, SMD VSV This cross-reference should be used as a guide only. Every effort has been taken to properly
MVKBP 105C, SMD, Bi-Polar No Sub match each competitive series correctly to the Luxon line. However, due to the nature of product,
PH 55C, Photoflash No Sub care must be taken to ensure the specific capacitor specifications match. SPI cannot take
RWE 85C, Screw Terminal Offer LPW responsabilty for incorrectly crossed components.
RWF 85C, Screw Terminal Offer LPW
RWL 85C, Screw Terminal Offer LPW
SME 85C, Minature EGR
SMEBP 85C, Bi-Polar, Minature ERN
SMG 85C, Minature EGR
SMH 85C, Snap-In LTW
SRABP 85C, Minature, Bi-Polar, 7mm high ESN
SREBP 85C, Minature, Bi-Polar, 5mm high No Sub
SRAC 85C, Minature, 7mm high ESS
SREC 85C, Minature, 5mm high ESF
SRG 85C, Minature ESS & ESR
SXE 105C, Minature Offer EHM & ESM
TXG 105C, Snap-In, Long Life No Sub
URZA 105C, Minature EHM
Unicon
BAM 85C, Minature Offer ERB & ERN
BGM 105C, Minature, Bi-Polar ERX
BPE 85C, Minature, Axial No Sub
BPM 85C, Minature, Bi-Polar ERN
BPT 85C, Minature, Axial No Sub
FFM 85C, Minature Offer ESR & ESS
FGM 105C, Minature Offer ESX & ESM
FSM 85C, Minature Offer ESR & ESS
FUM 85C, Minature Offer EGR
FUT 85C, Minature, Axial No Sub
GST 105C, Minature, Axial No Sub
GUM 105C, Minature ESM
HSM 125C, Minature EAM
HST 125C, Minature, Axial No Sub
KGM 105C, Minature, Long Life No Sub
KLM 105C, Minature Offer EHM
KSM 105C, Minature EFM
LGN 105C, Snap-In LHW
LLM 85C, Minature, Low Leakage ELL
LLT 85C, Minature, Low Leakage, Axial No Sub
LSN 85C, Snap-In LTW
MBM 85C, Minature, Bi-Polar, 5mm high No Sub
MGM 105C, Minature, 5mm high EFX
MLM 85C, Minature, Low Leakage, 5mm high No Sub
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
