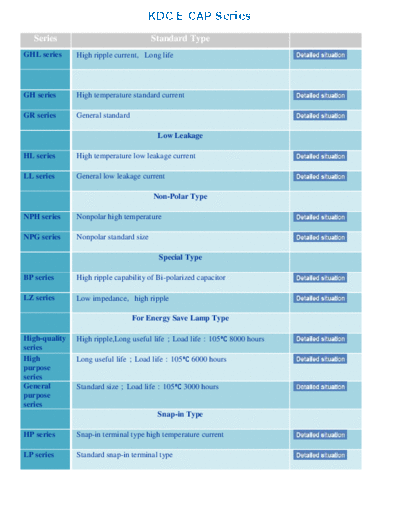

Image preview - the first page of the document
>> Download KDC Series documenatation <<
Text preview - extract from the document
KDC E-CAP Series
Series Standard Type
GHL series High ripple currentLong life
GH series High temperature standard current
GR series General standard
Low Leakage
HL series High temperature low leakage current
LL series General low leakage current
Non-Polar Type
NPH series Nonpolar high temperature
NPG series Nonpolar standard size
Special Type
BP series High ripple capability of Bi-polarized capacitor
LZ series Low impedancehigh ripple
For Energy Save Lamp Type
High-quality High ripple,Long useful lifeLoad life105 8000 hours
series
High Long useful lifeLoad life105 6000 hours
purpose
series
General Standard sizeLoad life105 3000 hours
purpose
series
Snap-in Type
HP series Snap-in terminal type high temperature current
LP series Standard snap-in terminal type
