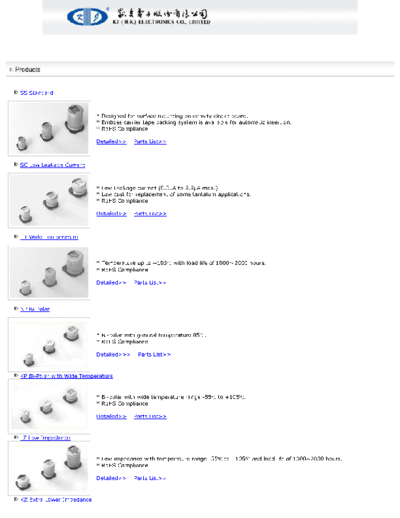

Image preview - the first page of the document
>> Download KJ Series Table documenatation <<
Text preview - extract from the document
SS Standard
* Designed for surface mounting on density circuit board.
* Emboss carrier tape packing system is available for automatic insertion.
* RoHS Compliance.
Detailed>> Parts List>>
SC Low Leakage Current
* Low Leakage current (0.5A to 3.3A max.)
* Low cost for replacement of some tantalum applications.
* RoHS Compliance.
Detailed>> Parts List>>
HT Wide Temperature
* Temperature up to +105 with load life of 10002000 hours.
* RoHS Compliance.
Detailed>> Parts List>>
NP Bi-Polar
* Bi-polar with general temperature 85.
* RoHS Compliance.
Detailed>>> Parts List>>
KP Bi-Polar with Wide Temperature
* Bi-polar with wide temperature range -55 to +105.
* RoHS Compliance.
Detailed>> Parts List>>
LZ Low Impedance
* Low impedance with temperature range -55 to +105 and load life of 1000~2000 hours.
* RoHS Compliance.
Detailed>> Parts List>>
KZ Extra Lower Impedance
* Extra low impedance with temperature range -55 to +105 and load life of 1000~3000 hours.
* Impedance 4060% less than LZ series.
* RoHS Compliance.
Detailed>> Parts List>>
FZ Long Life with Extra Lower Impedance
* Extra low impedance with temperature range -55 to +105 and load life of 2000~5000 hours.
* Impedance 525% less than KZ series.
* RoHS Compliance.
Detailed>> Parts List>>
EL Long Life Assurance
* Wide temperature range -55 to +105 with load life of 2000~3000 hours,.
* RoHS Compliance.
Detailed>> Parts List>>
KL 3000~5000 Hours Load Life
* Load life of 3000~5000 hours with temperature up to +105.
* RoHS Compliance.
Detailed>> Parts List>>
KH High Reliability
* High temperature up to +125
* Load life from 1000 hours to 5000 hours
* RoHS Compliance.
Detailed>> Parts List>>
HU Mid-to-High Voltage
* Load life of 5000 hours with temperature up to +105.
* Case size from 12.5 to 16.
* RoHS Compliance.
Detailed>> Parts List>>
