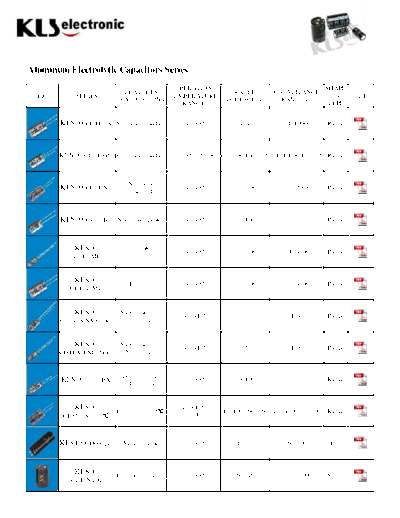

Image preview - the first page of the document
>> Download KLS Series Table documenatation <<
Text preview - extract from the document
Aluminum Electrolytic Capacitors Series
OPERATION SHAPE
FEATURES RATED CAPACITANCE
PIC SERIES TEMPERATURE OR PDF
APPLICATIONS VOLTAGE(V) RANGE(F)
RANGE TYPE
KLS10-CD11(GS) Miniature standard -40~+85 6.4~450 0.1~10000 Radial
KLS10-CD110(PT) Color TV standard -40~+85/-25~+85 6.3~100/100~205 0.1~10000/1.0~205 Radial
Non-polar
KLS10-CD71(NP) standard
-40~+85 6.3~100 0.47~6800 Radial
KLS10-CD72(BP) Non-polar speaker -40~+85 10~100 0.47~47 Radial
KLS10- Low leakage
-40~+85 6.3~100 0.1~4700 Radial
CD11L(ML) current
KLS10- Long life -40~+85 6.3~100 1.0~4700 Radial
CD11T(MT)
KLS10- Super miniature
-40~+105 6.3~63 0.1~470 Radial
CD110X(SX)(7mm) 7mm height
KLS10- Super miniature
-40~+105 4~50 0.1~330 Radial
CD11W(LM) (5mm) 5mm height
For horizontal
KLS10-CDS(HX) deflection
-40~+85 10~100 0.47~47 Radial
KLS10- High temp (105)
-40~+105/-
10~100/160~450 1.0~4700/1.0~200 Radial
CD81(TR)(105) 25~+105
KLS10-CD60(QD) Motor staring -20~+55 110~220 50~400 Lug
KLS10- High ripple current -40~+85 160~450 220~15000 Screw
CD13N(PK)
KLS10-AK20(AB) Axial bi-polar -40~+85 50~100 1.0~100 Axial
KLS10- High frequency
-40~+105 6.3~250 0.47~6800 Radial
CD11H(GF) low impedance
KLS10- High precision
-40~+85 10~50 0.47~470 Radial
CD117(SH) stability
KLS10-AK10(AN) Axial bi-polar -40~+85 50~100 1.0~200 Axial
KLS10- Middle and high
-40~+85 160~450 1~220 Axial
CD11Z(SZ) voltage standard
KLS10- Standard
-40~+85 160~400 33~470 Snap-in
CD293(BZ) miniaturized
Flash lamp circuits
KLS10-CD21S(PS) in camera
-20~+55 330V 20~370 Radial
KLS10- 105 20000his
-40~+105 10-400v 39-2200 Snap-in
CD294(SK) high ripple currert
