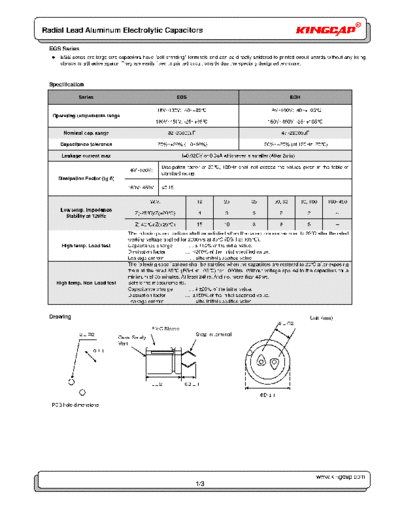

Kingcap [snap-in] EGS Series


>> Download Kingcap [snap-in] EGS Series documenatation <<

Text preview - extract from the document
Radial Lead Aluminum Electrolytic Capacitors

  EGS Series
      EGS series are large size capacitors have "self-standing" terminals and can be directly soldered to printed circuit boards without any fixing
      clamps or adhesive agents. They are easily fixed to printed circuit boards due the specially designed terminals.



  Specification

              Series                                          EGS                                                  EGH

                                                  16V~100V: -40~+85
