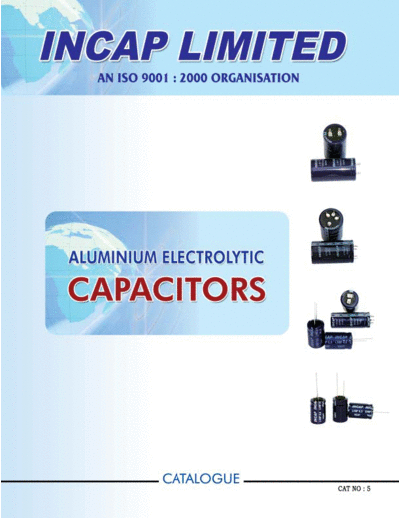

Image preview - the first page of the document
>> Download Incap Full documenatation <<
Text preview - extract from the document
1 ALUMINIUM ELECTROLYTIC CAPACITORS INCAP
ABOUT OUR COMPANY PRODUCT RANGE
INCAP LIMITED a Public Limited Company with Our product range covers Radial capacitors of
ISO 9001:2000 accredition is managed by professionally
Low Voltage (850C and 1050C.)
qualified personnel. The company with sound financial
Medium & High voltage (850C and 1050C.)
discipline, is having its registered office and
Low Leakage
manufacturing facility located at Nidamanur village which
is 12 K.M. away from Vijayawada on N.H. 5 and is Long Life & Extended Long Life
accessible by road and rail from different parts of the Low ESR (850C and 1050C.)
country. The company has got an installed capacity of Bi-Polar
100 million pcs per annum and was established in the
Non-Polar etc.
year 1992 with technical and financial collaboration from
M/s. Lelon Electronics Corporation. Our Snap-In type capacitors and Lug type capacitors
cover a range of capacitance upto 10,000 uF and a
PLANT AND MACHINERY voltage range upto 500 WV. We have satisfactorily
The Plant is housed in 2.5 acres of land with clean and developed 1050C special type Snap-in type capacitors
green atmosphere. We also ensure that the process up to 450WV and are being regularly supplied to OEM's
followed and waste disposable actions are and Dealers.
environmental friendly. Machinery which are imported New Addition to the product range :
from Japan and Taiwan are maintained with meticulous
I) Radial Capacitors :
care to ensure improved productivity of quality products.
The performance of the Machine is closely monitored a) Specially designed capacitors for Electronic
by the team responsible for Maintenance and Production Ballast and other Lighting Applications
by analysing the percentage yield on weekly basis and b) Import substitute capacitors with DOT approval.
making further improvements in the yield by going for
innovative techniques. II) Motor Start Capacitors :
a) 230 V AC Motor Start Capacitors (Single Can
ABOUT THE PROCESS and Double Can) for local requirement of single
All products are processed in a controlled and dust free phase pump sets, air conditioners, wet grinders
environment where Temperature, Relative humidity and etc.,
Human comfort are maintained at the optimum level.
b) 110 V AC, 125 V AC , 140 V AC and 150 V AC
The operators are provided with uniform and it is made
single can Motor Start Capacitors meant for
compulsory to use chlorine free gloves while handling
export to Singapore, Taiwan, Mexico etc.,
the products till it is hermetically sealed. We have
provided Air curtains at the entry to the plant to keep a III) LUG Terminal Capacitors :
barrier from outside atmosphere and also to prevent Starting from 25 diameter to 45 diameter covering
dust coming inside the plant. Operators are trained a range of very high CV values in Low Voltage,
specific to the nature of the work carried out including Medium and High Voltages.
the setting precautions and the quality norms so that
IV) Professional Screw Terminal Capacitors :
production is never taken on deviation. Besides, petrol
inspector collects samples at regular intervals from all Starting from 35 diameter to 76 diameter covering
stages of production to see its conformance to the set a wide range of CV values including high voltage
quality norms. up to 500 WV.
Design, specifications are subject to change without notice.
2 ALUMINIUM ELECTROLYTIC CAPACITORS INCAP
QUALITY ASSURANCE R & D Department collects samples of finished products
Materials are sourced from quality suppliers of repute at different intervals and subject them for different tests
from different parts of the world such as Japan, France, as per National and International Standards applicable
Italy, Korea and Taiwan based on the specification for Aluminium Electrolytic Capacitors.
provided by us. Incoming Inspection department verify
Our R & D efforts in nut shell "Boosting the
the quality with respect to the specification and Raw
Materials and Components strictly confirming to the productivity and performance of the products
specifications are accepted. while cutting costs"
All though the finished products are 100% tested in the APPROVALS
automatic / semi automatic machines in the production,
our Final Inspection Department take random samples 1) Systems Approval : ISO 9001:2000
as per Incap standards which are inline with International
2) Product Approval : LCSO, CACT and C-DOT
standards and record the observations and sends a
copy of the same to customers for verification as an 3) Approvals from MNCs as per their specifications
objective evidence of the conformance to the set quality
levels. TRAINING
Reliability of any product depends upon the availability We firmly believe that continuous training of employees
of proper testing apparatus and instruments. Our shall only contribute to improved quality with consistency.
instruments are calibrated at periodic intervals and are With this view in mind we organize training program to
maintained well to prevent the non confirming products our employees which are specifically needed to carry
going into the market. We are committed to provide
out the work in an effective manner. This type of
quality product and service at competitive prices at all
awareness creation coupled with the information on
times.
customer feed back improves the mindset of the
This may be the obvious reason that most of the major
employees about the changing market requirements and
OEM's and other buyers started using our product on
quality which act as an incentive to produce better quality
DOL (DIRECT ON LINE) basis.
products.
We strongly believe that right selection of the materials
and its proper processing with quality checks at different WORK CULTURE
stages of the process shall contribute to cost
Our employees are the greatest resources to our
effectiveness and PPM level quality of the end product.
Company and we see that this resource is growing in
R&D ACTIVITY positive direction by imparting training on stress relieving
"Customer is the Key to our Progress" and we and motivate them to take up larger initiatives and to
give utmost importance to the customer feed back work with dedication and team spirit. Employees
regarding Quality, Delivery, Service and Cost. In order providing ideas and suggestions are suitably rewarded
to maintain leadership in quality and service, we always which shall promote the generation of innovative ideas.
analyse competitors product and also the customers
input by a comparative evaluation techinique and the RELIABILITY and INTEGRITY are the corner
generated data is used for continuous improvement of stones of our services and this structutre is serving our
our products in line with the changing demand of the customers excellently for several years now. It is our
actual user. This implies that we make what customers constant endeavor at INCAP to provide quality product
need and supply them to their satisfaction. and work towards "Customer delight".
Design, specifications are subject to change without notice.
3 ALUMINIUM ELECTROLYTIC CAPACITORS INCAP
GENERAL INFORMATION
1. HOW TO ORDER
SERIES RATED VOLTAGE CAPACITANCE SIZE PACKING TOLERANCE
a) SERIES : Refer Table of Contents.
b) RATED VOLTAGE :
Voltage in volts (V) is represented by a two digit code showing the real working voltage indicated as follows.
Voltage
(WV) 4 6.3 10 13 16 25 35 40 50 63 75 80 100 160 200 250 350 400 450 500
Code OG OJ 1A 1B 1C 1E 1V 1G 1H 1J 1K 1L 2A 2C 2D 2E 2V 2G 2W 2X
c) CAPACITANCE :
Rated capacitance in uF is represented by a three digit number. The first two digits are the significant figures of the
nominal capacitance and the third digit indicates the number of zeros following these figures. The decimal point is
represented by the capital letter R. Please refer to the following example
