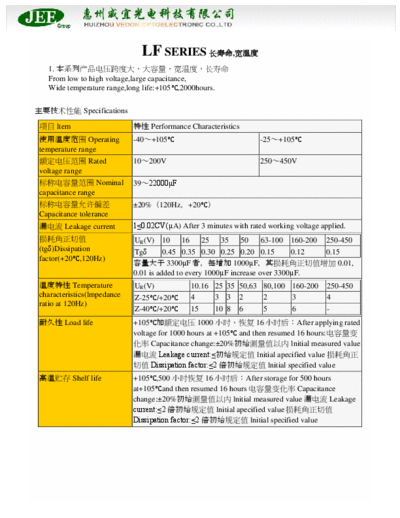

Image preview - the first page of the document



>> Download JEE [snap-in] LF series documenatation <<

Text preview - extract from the document

                              LF SERIES ,
  1.
  From low to high voltage,large capacitance,
  Wide temperature range,long life:+105,2000hours.

 Specifications

 ltem                        Performance Characteristics
 Operating                  -40+105                             -25+105
temperature range
 Rated                      10200V                              250450V
voltage range
 Nominal                    3922000F
capacitance range
