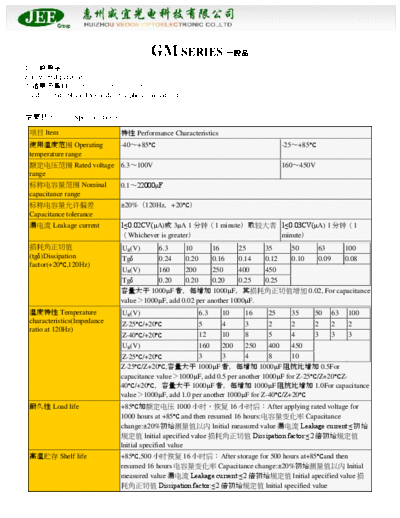

Image preview - the first page of the document



>> Download JEE [radial thru-hole] GM series documenatation <<

Text preview - extract from the document

                                          GM SERIES
1.
For general purpose
2.
Used in white-black TVs, radio, telephone circuits, etc.


 Specifications
  ltem                           Performance Characteristics
  Operating                     -40+85                                          -25+85
 temperature range
  Rated voltage 6.3100V                                                         160450V
 range
  Nominal                       0.122000F
 capacitance range
