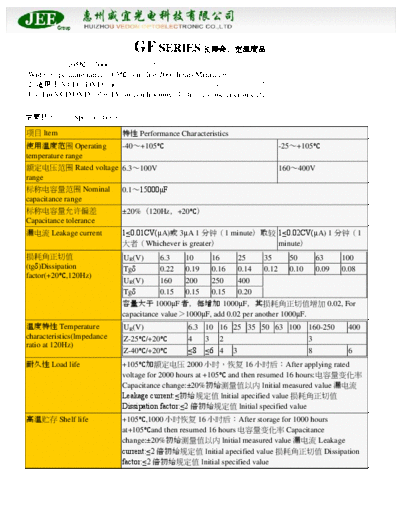

Image preview - the first page of the document
JEE [radial thru-hole] GF series


>> Download JEE [radial thru-hole] GF series documenatation <<

Text preview - extract from the document
                               GF SERIES
1. 1052000
Wide temperature range, 105, long lite:2000 hours.Miniature.
2.  VCDDVD
Used in VCD,DVD,color-TV,air conditioning electron gas meter ciruite etc.

 Specifications
 ltem                        Performance Characteristics
 Operating                  -40+105                                         -25+105
temperature range
 Rated voltage 6.3100V                                                      160400V
range
 Nominal                    0.115000F
capacitance range
