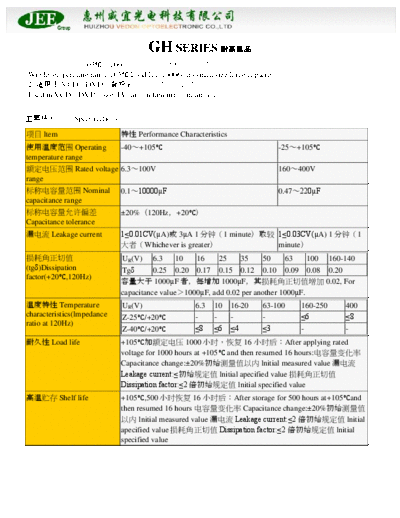

Image preview - the first page of the document
JEE [radial thru-hole] GH series


>> Download JEE [radial thru-hole] GH series documenatation <<

Text preview - extract from the document
                                    GH SERIES
1. 1051000
Winde temperature range,105,Load life:1000hours,small size,large capacity.
2.  VCDDVD
Used in VCDDVD,color-TV,air condlitioning circuits etc.

 Specifications
 ltem                        Performance Characteristics
 Operating                  -40+105                                          -25+105
temperature range
 Rated voltage 6.3100V                                                       160400V
range
 Nominal                    0.110000F                                        0.47220F
capacitance range
