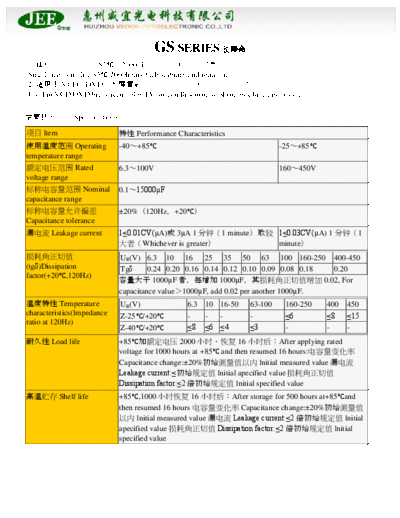

Image preview - the first page of the document
JEE [radial thru-hole] GS series


>> Download JEE [radial thru-hole] GS series documenatation <<

Text preview - extract from the document
                                     GS SERIES
1. 852000
Small size, long life,85,2000hours,high stability and reliability.
2.  VCDDVD
Used in VCD,DVD,big screen color-TV,air condlitioning,washing machine circuits etc.

 Specifications
 ltem                        Performance Characteristics
 Operating                  -40+85                                         -25+85
temperature range
 Rated                      6.3100V                                        160450V
voltage range
 Nominal                    0.115000F
capacitance range
