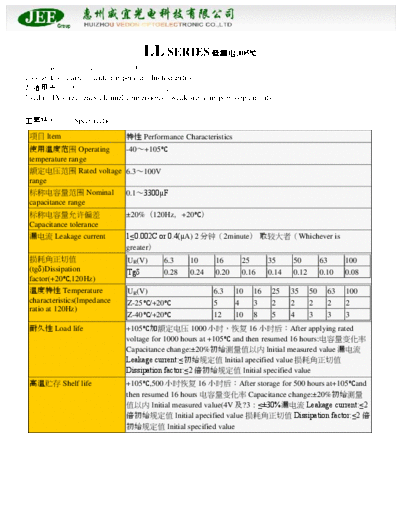

Image preview - the first page of the document
JEE [radial thru-hole] LL series


>> Download JEE [radial thru-hole] LL series documenatation <<

Text preview - extract from the document
                                    LL SERIES ,105
1.
Low leakage current, wide temperature, high stability.
2.
Used in TVs frequency channel conversion or weak signal import loop circuits.

 Specifications

  ltem                          Performance Characteristics
  Operating                    -40+105
 temperature range
  Rated voltage 6.3100V
 range
  Nominal                      0.13300F
 capacitance range
