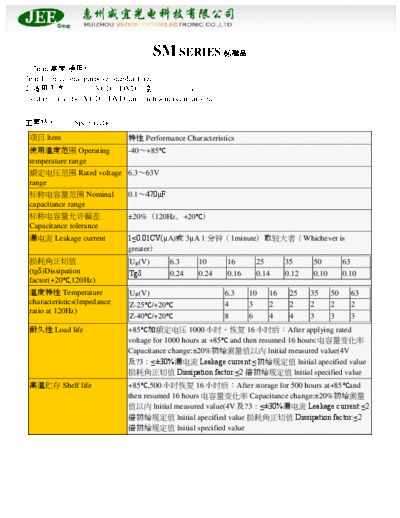

Image preview - the first page of the document
JEE [radial thru-hole] SM series


>> Download JEE [radial thru-hole] SM series documenatation <<

Text preview - extract from the document
                                       SM SERIES
1. 7mm ,
7mmL for general purpose, standard size
2. VCDDVD
Used in car audio, VCDDVD, air conditioners circuits,etc.

 Specifications
  ltem                         Performance Characteristics
  Operating                   -40+85
 temperature range
  Rated voltage 6.363V
 range
  Nominal                     0.1470F
 capacitance range
