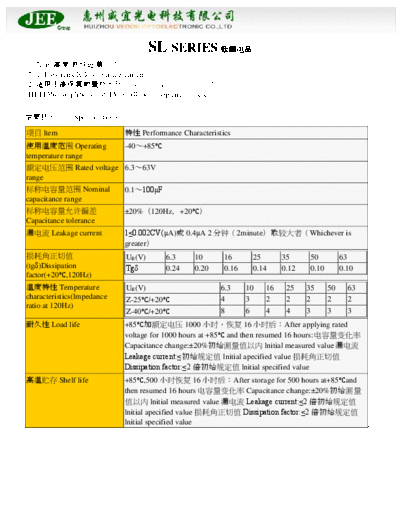

Image preview - the first page of the document
JEE [radial thru-hole] SL series


>> Download JEE [radial thru-hole] SL series documenatation <<

Text preview - extract from the document
                                      SL SERIES
1. 7mm ,
7mmL,extremely low teakage current.
2.
HI-FI Pre-amplifiers and TV oscillation loop circuits, etc.

 Specifications
 ltem                          Performance Characteristics
 Operating                    -40+85
temperature range
 Rated voltage 6.363V
range
 Nominal                      0.1100F
capacitance range
