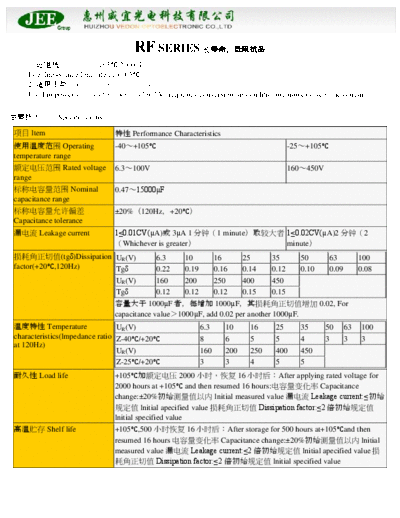

Image preview - the first page of the document
JEE [radial thru-hole] RF series


>> Download JEE [radial thru-hole] RF series documenatation <<

Text preview - extract from the document
                                    RF SERIES
    1. 105 2000
    Low lmpedance,long life at +105
    2.
    Used in power supply of numeral color-TV,frequency conversion air conditioning,numeral acoustics circuits.

 Specifications
 ltem                          Performance Characteristics
 Operating                    -40+105                                               -25+105
temperature range
 Rated voltage                6.3100V                                               160450V
range
 Nominal                      0.4715000F
capacitance range
