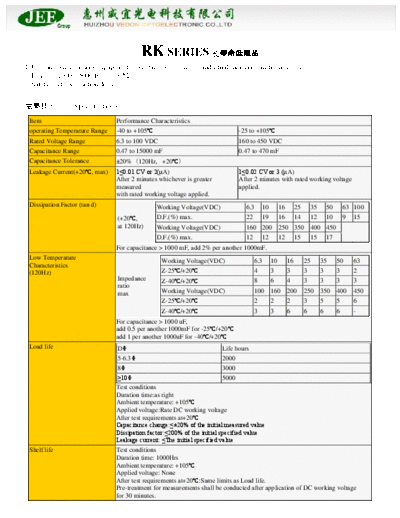

Image preview - the first page of the document
JEE [radial thru-hole] RK series


>> Download JEE [radial thru-hole] RK series documenatation <<

Text preview - extract from the document
                                         RK SERIES
1. Used in communication equipments, switching power supply, industrial measuring instruments, etc.
2. Load life 20005000 Hrs at 105
3. Safety vent construction design.


 Specifications
 Item                           Performance Characteristics
 operating Temperature Range    -40 to +105                                   -25 to +105
 Rated Voltage Range            6.3 to 100 VDC                                160 to 450 VDC
 Capacitance Range              0.47 to 15000 mF                              0.47 to 470 mF
 Capacitance Tolerance
