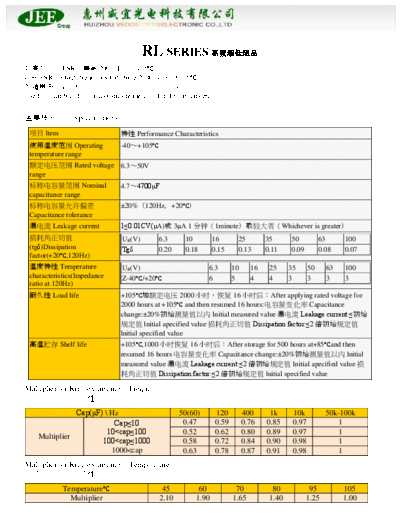

Image preview - the first page of the document
JEE [radial thru-hole] RL series


>> Download JEE [radial thru-hole] RL series documenatation <<

Text preview - extract from the document
                                      RL SERIES
1.  ESR 2000 105
Low ESR for high frequency,Life time:2000 hours at 105
2.
Used in mainboard, hi-fi acoustics,numeral color-TV circuits etc.


 Specifications
  ltem                        Performance Characteristics
  Operating                  -40+105
 temperature range
  Rated voltage 6.350V
 range
  Nominal                    4.74700F
 capacitance range
