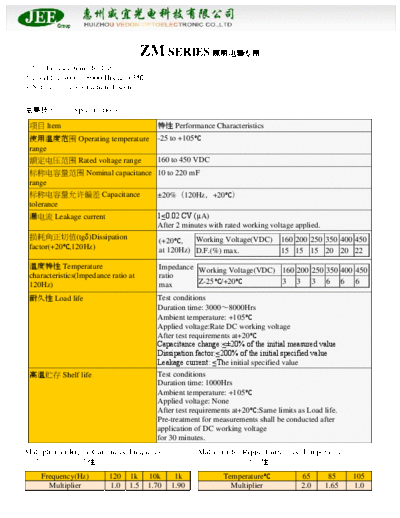

Image preview - the first page of the document
JEE [radial thru-hole] ZM series


>> Download JEE [radial thru-hole] ZM series documenatation <<

Text preview - extract from the document
                                       ZM SERIES
1. Used in electronic ballast.
2. Load life 30008000 Hrs at 105
3. Safety vent construction design.

 Specifications
  ltem                                    Performance Characteristics
  Operating temperature                  -25 to +105
 range
  Rated voltage range                    160 to 450 VDC
  Nominal capacitance 10 to 220 mF
 range
  Capacitance
