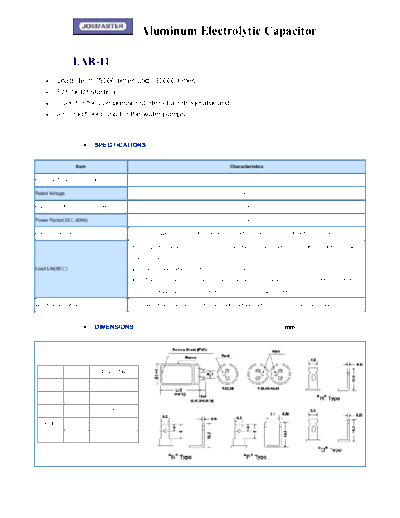

Image preview - the first page of the document



>> Download Joemaster [lug-terminal] LAR-11 Series documenatation <<

Text preview - extract from the document

                                                    Aluminum Electrolytic Capacitor

                    LAR-11
            Load life of 75000 times and 30000 times
            For motor starting
            Used for the compressor starter of a refrogeratpr and
            air-conditioner and for the water pumps



                             SPECIFICATIONS


                    Item                                                                       Characteristics

Operating Temperature Range(     )                                                                 -20~+70

Rated Voltage                                                                                    110-300V,AC

Capacitance Tolerance(25     ,120Hz)                                                               0%-20%

Power Factor(25     ,60Hz)                                                                           0.08

Over-Voltage Test                                           Applied 1.2 times rated voltage for 2 minutes or 1.4 times rated voltage for 30 seconds.

                                              125W.V:Apply for one,second and rest for 29 seconds, two times per minute at +70       after 75000 times Power

                                              factor:20% or less.

Load Life(85    )                             capacitance change: Within 25% of initial measured value.

                                              160WV:Apply for one second and rest for 59 seconds, one time per minute at +70       after 30000 times. Power

                                              factor :20% or less. Capacitance change: Within 25% of initial measured value.

Withstanding Voltage                                  Withstand 1500V,AC(r.m.s) for one minutes between both termainals and the case holding clamp.



                             DIMENSIONS                                                                                   mm




      D             A          Teminal Type

     25             10                 H

     30             10               G,H

     35             12               G,N,P

    40,45           16               G,N,P

     51             20               G,N,P
                        STANDARD RATINGS


          WV
                110         125       140       160       180       200       220          250      280      300
Cap(
