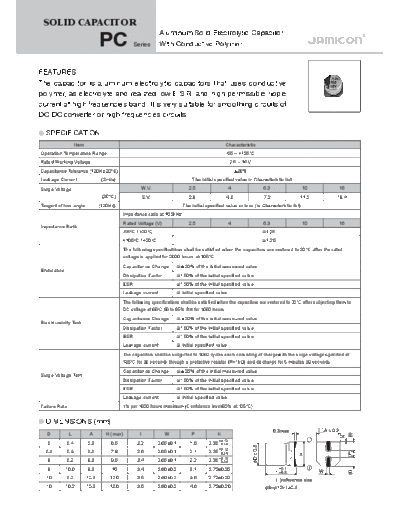

Jamicon [polymer SMD] PC Series


>> Download Jamicon [polymer SMD] PC Series documenatation <<

Text preview - extract from the document
 SOLID CAPACITOR

                                 PC
                                                               Aluminum Solid Electrolytic Capacitor
                                                  Series       With Conductive Polymer


FEATURES:
The capacitor is aluminum electrolytic capacitors that uses conductive
polymer, as electrolyte and realized low E.S.R. and high permissible ripple
current at high frequencies band, It is very suitable for smoothing circuits of
DC-DC converter or high frequencies circuits.

  SPECIFICATION
                   Item                                                                          Characteristic
Operation Temperature Range                                                                      -55 ~ +105oC
Rated Working Voltage                                                                                 2.5 ~ 16V
Capacitance Tolerance (120Hz 20 C)    o
