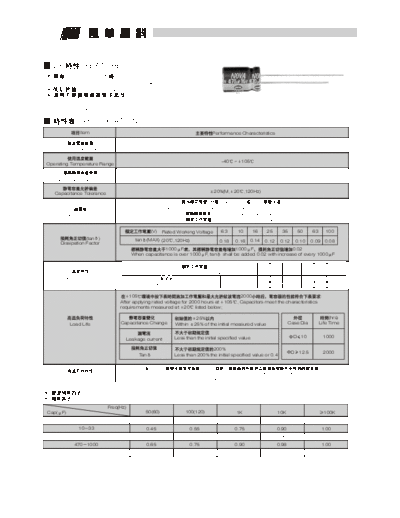

Image preview - the first page of the document
![LH NOVA-Fenghua [radial thru-hole] LX Series](/pics/5c2dcd152874d.gif)
>> Download LH NOVA-Fenghua [radial thru-hole] LX Series documenatation <<
Text preview - extract from the document
LX FEATURE
: 105 2000
Life time:105 2000 hours ( D 12.5)
Low impedance
For switching power supplies and other industrial
electronic products applications
SPECIFICATIONS
Item Performance Characteristics
6.3V.DC 100V.DC
Rated Voltage Range
-40 +105
Operating Temperature Range
0.47 F 22000 F
Nominal Capacitance Range
Capacitance Tolerance 20%(M,+20 ,120Hz)
2 I 0.01CV 3 A( )20
After application of rated voltage for 2 minutes: I 0.01CV or 3 A(Whichever is greater)20
Leakage Current C: ( F) C: Nominal Capacitance in F;
V: (V) V: Rated Working Voltage in V
(V) Rated Working Voltage 6.3 10 16 25 35 50 63 100
(tan ) tan (MAX) (20 ,120Hz) 0.18 0.16 0.14 0.12 0.12 0.10 0.09 0.08
Dissipation Factor
1000 F 1000 F 0.02
When capacitance is over 1000 F, tan shall be added 0.02 with increase of every 1000 F
(V)
6.3 10 16~25 35 50 63~100
Rated Working Voltage
Temperature Stability (Z-25 /z+20 ) 4 3 2 2 2 2
Impedance Ratio(120Hz) (Z-40 /z+20 ) 8 6 4 4 3 3
+105 2000 :
After applying rated voltage for 2000 hours at +105 , Capacitors meet the characteristics
requirements measured at +20 listed below;
25% (hrs)
Load Life Capacitance Change Within 25% of the initial measured value Case Dia Life Time
Less than the initial specified value D 10 1000
Leakage current
200%
D 12.5 2000
Tan Less than 200% the initial specified value or 0.4
+105 1000
After application of rated working voltage and maximum permissible ripple current specified at +105
Shelf Life for 1000 hours , Capacitors meet the characteristics requirements measured at +20 listed below:
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Freq(Hz)
Cap( F) 50(60) 100(120) 1K 10K 100K
0.47 4.7 0.35 0.42 0.60 0.80 1.00
10 33 0.45 0.55 0.75 0.90 1.00
47 330 0.60 0.70 0.85 0.95 1.00
470 1000 0.65 0.75 0.90 0.98 1.00
2200 22000 0.75 0.80 0.95 1.00 1.00
52
ALUMINUM ELECTROLYTIC CAPACITOR(CD286 LX)
CASE SIZE TABLE
0.5 1.0
D 5 6.3 8 10 12.5 16 18
F 0.5 2.0 2.5 3.5 5 7.5
d 0.1 0.5 0.6 0.8
L 16;1.5 L 16;2.0
LX
DIMENSIONS, RATED VOLTAGE AND CAPACITANCE
WV(v) 6.3(LA) 10(LB) 16(LC) 25(LD) 35(LE)
Cap( F) (1) (2) (3) (1) (2) (3) (1) (2) (3) (1) (2) (3) (1) (2) (3)
10(100) 5 11 100 1.50 5 11 100 1.50 5 11 100 1.50
22(220) 5 11 150 1.20 5 11 150 1.20 5 11 150 1.20
33(330) 5 11 150 0.90 5 11 180 0.65 5 11 180 0.65
47(470) 5 11 180 0.65 5 11 180 0.65 5 11 180 0.65
100(101) 5 11 180 0.65 6.3 11 295 0.25 6.3 11 295 0.65
220(221) 5 11 180 0.65 6.3 11 295 0.25 6.3 11 295 0.25 8 12 555 0.15 8 12 555 0.25
330(331) 6.3 11 295 0.25 6.3 11 295 0.25 8 12 555 0.15 8 12 555 0.15 10 12 760 0.15
470(471) 6.3 11 295 0.25 8 12 555 0.15 8 12 555 0.15 10 12 760 0.090 10 16 1050 0.090
1000(102) 8 12 555 0.15 10 12 760 0.090 10 16 1050 0.068 10 20 1220 0.052 12.5 20 1660 0.068
2200(222) 10 16 1050 0.068 10 20 1220 0.052 12.5 20 1660 0.039 12.5 25 1950 0.030 16 25 2150 0.039
3300(333) 10 20 1220 0.052 12.5 20 1660 0.039 12.5 25 1950 0.030 16 25 2150 0.022 16 35 2650 0.022
4700(472) 12.5 20 1660 0.039 12.5 25 1950 0.030 16 25 2150 0.022 16 30 2400 0.018 18 35 2800 0.016
6800(682) 12.5 25 1950 0.030 16 25 2150 0.022 16 30 2400 0.018 18 35 2800 0.015
10000(103) 16 25 2150 0.022 16 30 2400 0.018 18 35 2800 0.015
15000(153) 16 35 2650 0.016
22000(223) 18 40 3100 0.013
WV(v) 50(LF) 63(LG) 100(MA)
Cap( F) (1) (2) (3) (1) (2) (3) (1) (2) (3)
0.47(R47) 5 11 20 6.0 5 11 20 9.0
1(1R0) 5 11 36 4.0 5 11 36 7.0
2.2(2R2) 5 11 50 3.0 5 11 50 6.0
3.3(3R3) 5 11 70 2.8 5 11 70 5.0
4.7(4R7) 5 11 90 2.5 5 11 80 4.5
10(100) 5 11 110 2.0 5 11 110 2.5 5 11 100 4.5
22(220) 5 11 140 1.35 5 11 140 2.5 6.3 11 170 2.2
33(330) 5 11 140 1.35 6.3 11 205 1.2 8 12 235 1.1
47(470) 6.3 11 220 0.74 6.3 11 205 1.2 10 12 265 0.76
100(101) 8 12 320 0.42 10 12 325 0.45 10 20 390 0.37
220(221) 10 12 520 0.29 10 20 520 0.21 12.5 25 770 0.18
330(331) 10 16 670 0.21 12.5 20 730 0.16 12.5 25 770 0.18
470(471) 10 20 820 0.15 12.5 25 855 0.14 16 25 900 0.12
1000(102) 12.5 25 1200 0.087 16 25 1240 0.090 18 40 1530 0.055
2200(222) 16 30 1750 0.044
3300(332) 18 35 2200 0.030
100KHz Impedance at 100KHz+20 ( )
Max allowable ripple current (mA r.m.s, +105 .100KHz)
Case Size D L(mm)
