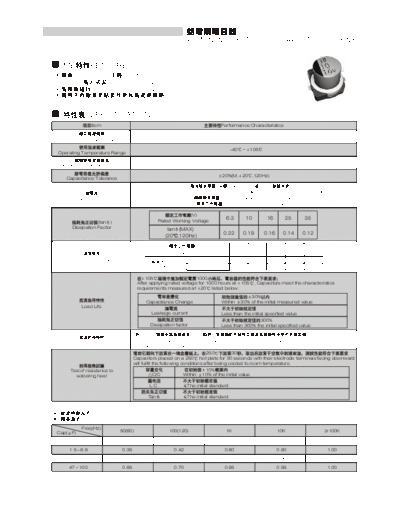

Image preview - the first page of the document
![LH NOVA-Fenghua [smd] ME Series](/pics/5c2dcd549e9ed.gif)
>> Download LH NOVA-Fenghua [smd] ME Series documenatation <<
Text preview - extract from the document
ALUMINUM ELECTROLYTIC CAPACITOR(CD50E ME)
ME FEATURE
: 105 1000 Life time:105 1000 hours
5.5mm Chip type with 5.5 mm height
Low impedance value at high frequency
Ideally suited for automatic SMT and high density circuits
SPECITICATIONS
Item Performance Characteristics
6.3V.DC 35V.DC
Rated Voltage Range
-40 +105
Operating Temperature Range
1 F 100 F
Nominal Capacitance Range
20%(M,+20 ,120Hz)
Capacitance Tolerance
2 I 0.01CV 3 A( )20
After application of rated voltage for 2 minutes: I 0.01CV or 3 A(Whichever is greater)20
Leakage Current C: ( F) C: Nominal Capacitance in F;
V: (V) V: Rated Working Voltage in V
(V)
Rated Working Voltage
6.3 10 16 25 35
(tan )
Dissipation Factor tan (MAX)
0.22 0.19 0.16 0.14 0.12
(20 ,120Hz)
(V)
6.3 10 16 25 35
Rated Working Voltage
Temperature Stability (120Hz) (z-25 /z+20 ) 2 2 2 2 2
Impedance Ratio (z-55 /z+20 ) 8 6 4 3 3
+105 1000
After applying rated voltage for 1000 hours at +105 , Capacitors meet the characteristics
requirements measured at +20 listed below;
30%
Capacitance Change Within 30% of the initial measured value
Load Life
Leakage current Less than the initial specified value
300%
Dissipation factor Less than 300% the initial specified value
+105 500
After leaving capacitors under no load at +105 for 500 hours, capacitors meet the
Shelf Life characteristics listed above
250 30
Capacitors placed on a 250 hot plate for 30 seconds with their electrode terminais facing downward
will fulfill the following conditions after being cooled to room temperature.
Test of resistance to 10%
soldering heat C/C Within 10% of the initial value
L.C. The initial standard
Tan The initial standard
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Freq(Hz)
Cap( F) 50(60) 100(120) 1K 10K 100K
1 0.25 0.30 0.60 0.80 1.00
1.5 6.8 0.35 0.42 0.60 0.80 1.00
10~33 0.45 0.55 0.75 0.90 1.00
47 100 0.65 0.70 0.85 0.95 1.00
25
CASE SIZE TABLE
L+0.1MAX C 0.2
CAPACITACE
RATED
VOITAGE
D+0.5MAX
A
16V
LOT NO
0.2
EE
10
E
B
A
0.3MAX W1 0.5MAX
D L C B A W1 E
4 5.5 4.3 4.3 1.8 0.5 0.8 1.0
5 5.5 5.3 5.3 2.1 0.5 0.8 1.4
6.3 5.5 6.6 6.6 2.5 0.5 0.8 2.0
ME
DIMENSIONS, RATED VOLTAGE AND CAPACITANCE
WV(v) 6.3(LA) 10(LB) 16(LC) 25(LD) 35(LE)
Cap( F) (1) (2) (3) (1) (2) (3) (1) (2) (3) (1) (2) (3) (1) (2) (3)
1(1R0) 4 5.5 53 5.5
1.5(1R5) 4 5.5 53 5.5
2.2(2R2) 4 5.5 53 5.5
3.3(3R3) 4 5.5 53 5.5
4.7(4R7) 4 5.5 53 5.5 4 5.5 53 5.5
6.8(6R8) 4 5.5 53 5.5 5 5.5 85 2.8
10(100) 4 5.5 53 5.5 5 5.5 85 2.8 5 5.5 85 2.8
15(150) 5 5.5 85 2.8 6.3 5.5 120 1.5 6.3 5.5 120 1.5
22(220) 4 5.5 53 5.5 5 5.5 85 2.8 5 5.5 85 2.8 6.3 5.5 120 1.5 6.3 5.5 120 1.5
33(330) 5 5.5 85 2.8 5 5.5 85 2.8 6.3 5.5 120 1.5 6.3 5.5 120 1.5
47(470) 5 5.5 85 2.8 6.3 5.5 120 1.5 6.3 5.5 120 1.5
68(680) 6.3 5.5 120 1.5 6.3 5.5 120 1.5
100(101) 6.3 5.5 120 1.5
100KHz Impedance at 100KHz+20 ( )
Max allowable ripple current (mA r.m.s. +105 , 100kHz)
Case Size D L(mm)
