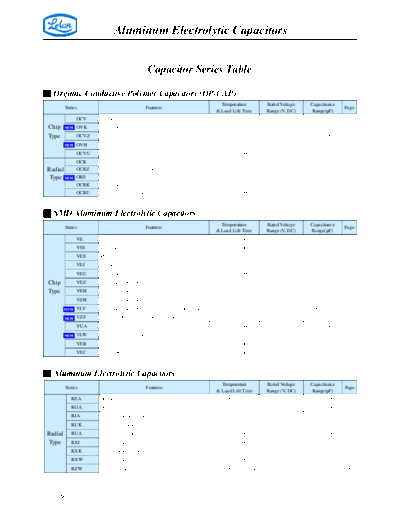

Image preview - the first page of the document
>> Download Lelon Series Table documenatation <<
Text preview - extract from the document
Aluminum Electrolytic Capacitors
Capacitor Series Table
Organic Conductive Polymer Capacitors (OP-CAP)
Temperature Rated Voltage Capacitance
Series Features Page
& Load Life Time Range (V, DC) Range(F)
OCV Standard 105 , 2,000 Hrs 2.5 ~ 35 6.8 ~ 1,500 29
Chip NEW OVK Long Life 105 , 5,000 Hrs 4 ~ 16 39 ~ 680 31
Type OCVZ Downsize, Super Low ESR 105 , 2,000 Hrs 2.5 ~ 16 39 ~ 2,700 33
NEW OVH Ultra Low ESR 105 , 2,000 Hrs 2.5 ~ 6.3 220 ~ 2,200 35
OCVU High Temperature Usage +125 125 , 1,000 ~ 2,000 Hrs 2.5 ~ 16 180 ~ 1,500 37
OCR Standard 105 , 2,000 Hrs 2.5 ~ 50 6.8 ~ 1,500 39
Radial OCRZ Downsize, Super Low ESR 105 , 2,000 Hrs 2.5 ~ 16 100 ~ 2,700 41
Type NEW ORE Ultra Low ESR, Long Life 105 , 5,000 Hrs 2.5 330 ~ 820 43
OCRK Long Life 105 , 5,000 Hrs 2.5 ~ 16 180 ~ 820 44
OCRU High Temperature Usage +125 125 , 1,000 ~ 2,000 Hrs 2.5 ~ 20 100 ~ 1,200 46
SMD Aluminum Electrolytic Capacitors
Temperature Rated Voltage Capacitance
Series Features Page
& Load Life Time Range (V, DC) Range(F)
VE Standard 85 , 2,000 Hrs 4 ~ 450 0.1 ~ 6,800 48
VSS 4.5 mmL, Low Profile 85 , 2,000 Hrs 4 ~ 50 0.1 ~ 100 50
VES Miniaturized, 105 105 , 1,000 Hrs 6.3 ~ 50 0.1 ~ 100 51
VEJ Standard, 105 105 , 2,000 Hrs 6.3 ~ 450 0.22 ~ 6,800 53
VEU Long Life, 105 105 , 3,000 ~ 5,000 Hrs 6.3 ~ 50 0.1 ~ 1,500 55
Chip VEZ Low Impedance, Downsize 105 , 1,000 Hrs 6.3 ~ 50 1 ~ 220 57
Type VEH Low Impedance 105 , 2,000 Hrs 6.3 ~ 50 3.3 ~ 1,000 58
VZH Low Impedance, Downsize, Long Life 105 , 2,000 ~ 5,000 Hrs 6.3 ~ 100 1 ~ 8,200 60
NEW VLV Low Impedance, Downsize, Long Life, Anti-vibration 105 , 5,000 Hrs 6.3 ~ 100 100 ~ 8,200 62
NEW VZS Ultra Low Impedance, Downsize, Long Life 105 , 2,000 Hrs 6.3 ~ 35 22 ~ 680 64
VUA High Temperature Usage, 125 125 , 1,000 ~ 2,000 Hrs 10 ~ 50 22 ~ 4,700 66
NEW VLW High Temperature Usage, 125, Anti-vibration 125 , 2,000 Hrs 10 ~ 50 100 ~ 4,700 68
VEB Non-polarized 85 , 2,000 Hrs 6.3 ~ 50 0.1 ~ 47 70
VEC Low Leakage Current 85 , 2,000 Hrs 6.3 ~ 50 0.1 ~ 100 72
Aluminum Electrolytic Capacitors
Temperature Rated Voltage Capacitance
Series Features Page
& Load Life Time Range (V, DC) Range(F)
REA Standard, 85 85, 2,000 ~ 3,000 Hrs 6.3 ~ 450 0.1 ~ 22,000 74
RGA Standard, 105 105, 2,000 Hrs 6.3 ~ 450 0.1 ~ 22,000 77
RJA Wide Temperature Range 105, 2,000 Hrs 6.3 ~ 100 0.1 ~ 4,700 80
RUK High Temperature Usage, Long Life, 125 125 , 3,000 ~ 5,000 Hrs 10 ~ 63 0.47 ~ 1,000 82
Radial RUA High Temperature Usage, 130 130, 2,000 ~ 3,000 Hrs 10 ~ 450 0.47 ~ 1,000 84
Type RXJ Low Impedance 105, 2,000 ~ 5,000 Hrs 6.3 ~ 100 1 ~ 4,700 86
RXK Low Impedance, Downsize 105, 2,000 ~ 5,000 Hrs 6.3 ~ 63 12 ~ 10,000 89
RXW Low Impedance, Long Life 105, 4,000 ~ 7,000 Hrs 6.3 ~ 100 0.47 ~ 15,000 93
RZW Low impedance, Long Life 105 , 4,000 ~ 10,000 Hrs 6.3 ~ 63 0.47 ~ 18,000 96
2011 Version
Aluminum Electrolytic Capacitors
Temperature Rated Voltage Capacitance
Series Features Page
& Load Life Time Range (V, DC) Range(F)
RXY Low Impedance 105 , 2,000 ~ 3,000 Hrs 6.3 ~ 50 0.47 ~ 18,000 99
RZD Ultra Low Impedance 105 , 2,000 ~ 5,000 Hrs 16 ~ 50 22 ~ 3,900 102
RXC High Voltage, High Ripple Current 105 , 2,000 ~ 3,000 Hrs 160 ~ 450 1.5 ~ 330 104
RXB High Voltage, High Ripple Current, Longer Life 105 , 5,000 Hrs 160 ~ 450 2.2 ~ 330 106
RXQ High Voltage, High Ripple Current, Long Life 105, 8,000 ~ 10,000 Hrs 160 ~ 450 6.8 ~ 330 108
Radial RGL High Voltage, High Ripple Current, Slim Type 105, 2,000 Hrs 400 ~ 450 15 ~ 220 110
Type NEW RPL High Voltage, High Ripple Current, Longer Life, Slim Type 105, 5,000 Hrs 400 ~ 450 33 ~ 150 112
RQL High Voltage, High Ripple Current, Long Life, Slim Type 105, 10,000 Hrs 400 ~ 450 33 ~ 180 114
RLA Low Leakage Current 85, 2,000 Hrs 6.3 ~ 100 0.1 ~ 4,700 116
RA Low Leakage Current, 105 105, 1,000 Hrs 6.3 ~ 100 0.1 ~ 4,700 118
RGV Flame Retardant, 105 105 , 2,000 Hrs 400 , 450 22 ~ 150 120
SEA 7 mmL, General Purpose 85 , 2,000 Hrs 4 ~ 63 0.1 ~ 1,000 121
SG 7 mmL, General Purpose, 105 105 , 1,000 Hrs 4 ~ 63 0.1 ~ 330 122
SLA 7 mmL, Low Leakage Current 85 , 2,000 Hrs 4 ~ 63 0.1 ~ 100 123
Low- SA 7 mmL, Low Leakage Current, 105 105 , 1,000 Hrs 4 ~ 63 0.1 ~ 100 124
profile SJA Wide Temperature Range 105 , 2,000 Hrs 4 ~ 63 0.1 ~ 470 125
SS 5 mmL, General Purpose 85 , 1,000 Hrs 4 ~ 50 0.1 ~ 330 126
SSG 5 mmL, General Purpose, 105 105 , 1,000 Hrs 4 ~ 50 0.1 ~ 220 127
SSL 5 mmL, Low Leakage Current 85 , 1,000 Hrs 4 ~ 50 0.1 ~ 100 128
SXJ 5 ~ 7 mmL, Low Impedance 105 , 1,000 Hrs 6.3 ~ 35 4.7 ~ 220 129
RN Bi-polarized 85 , 2,000 Hrs 6.3 ~ 250 0.1 ~ 2,200 130
Bi- RNG Bi-polarized, 105 105 , 2,000 Hrs 6.3 ~ 250 0.1 ~ 2,200 132
polarized SN 7 mmL, Bi-polarized 85 , 1,000 Hrs 4 ~ 63 0.1 ~ 100 134
SSN 5 mmL, Bi-polarized 85 , 1,000 Hrs 4 ~ 50 0.1 ~ 47 135
LS Snap-in, Standard 85 , 2,000 Hrs 16 ~ 500 56 ~ 33,000 136
LS2 Snap-in for Over Voltage Vent Operation Test 85 , 2,000 Hrs 200, 250, 400, 450 47 ~ 1,800 141
LSG Snap-in, Standard, 105 105 , 2,000 Hrs 16 ~ 500 56 ~ 22,000 143
LSM Snap-in, Longer Life 105 , 3,000 Hrs 16 ~ 500 47 ~ 22,000 147
LSK Snap-in, Long Life 105 , 5,000 Hrs 200 ~ 500 39 ~ 1,200 149
Large LV Flame Retardant 85 , 2,000 Hrs 400, 450 56 ~ 680 152
Size LVG Flame Retardant, 105 105 , 2,000 Hrs 400, 450 47 ~ 470 152
NEW LHM Snap-in, High Speed Charge-discharge 105 , 3,000 Hrs 350 ~ 450 82 ~ 820 154
MEA Screw Terminal, Standard, 85 85 , 2,000 Hrs 10 ~ 450 270 ~ 680,000 156
MEK Screw Terminal, Long Life, 85 85 , 5,000 Hrs 350 ~ 525 1,000 ~ 18,000 160
MEQ Screw Terminal, Long Life, 85 85 , 20,000 Hrs 350 ~ 450 1,000 ~ 10,000 162
MGA Screw Terminal, Standard, 105 105 , 2,000 Hrs 16 ~ 400 180 ~ 470,000 164
MGK Screw Terminal, Long Life, 105 105 , 5,000 Hrs 350 ~ 450 1,000 ~ 10,000 167
NEW MKR Screw Terminal, High Speed Charge-discharge 85 , 5,000 Hrs 350 ~ 450 1,000 ~ 18,000 169
2011 Verison
