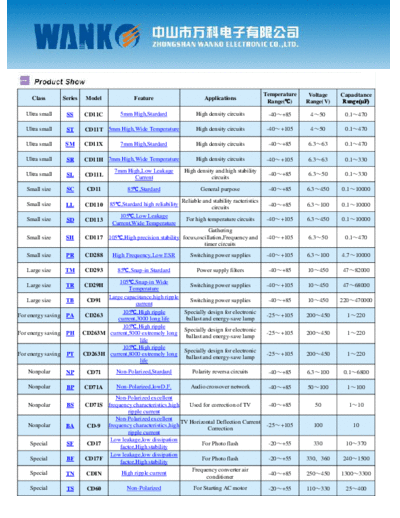

Image preview - the first page of the document
Lscon Series Table


>> Download Lscon Series Table documenatation <<

Text preview - extract from the document
|


                                                                                                                Temperature    Voltage   Capacitance
         Class          Series    Model              Feature                        Applications
                                                                                                                 Range()      Range(V)   Range(F)

       Ultra small       SS      CD11C         5mm High,Stardard                High density circuits            -40+85        450        0.1470

       Ultra small       ST      CD11T 5mm High,Wide Temperature                High density circuits            -40+105       450        0.1470

       Ultra small       SM      CD11X         7mm High,Stardard                High density circuits            -40+85       6.363       0.1470

       Ultra small       SR      CD11H 7mm High,Wide Temperature                High density circuits            -40+105      6.363       0.1330
                                             7mm High,Low Leakage          High density and high stability
       Ultra small       SL      CD11L                                                                           -40+85       6.350       0.1330
                                                   Current                            circuits
       Small size        SC       CD11            85,Stardard                     General purpose                -40+85       6.3450     0.110000
                                                                          Reliable and stability racteristics
       Small size        LL       CD110    85,Stardard high reliability                                          -40+85       6.3100     0.110000
                                                                                      circuits
                                               105,Low Leakage
       Small size        SD       CD113                                    For high temperature circuits         -40+105      6.3450     0.110000
                                            Current,Wide Temperature
                                                                                   Gathering
       Small size        SH       CD117    105,High precision stability focus,oscillation,Frequency and          -40+105      6.350       0.1470
                                                                                 timer circuits
       Small size        PR       CD288     High Frequency,Low ESR           Switching power supplies            -40+105      6.3100     4.710000

       Large size        TM       CD293       85,Snap-in Stardard               Power supply filters             -40+85       10450      4782000
                                            105,Snap-in Wide
       Large size        TR      CD29H                                  Switching power supplies                 -40+105      10450      4768000
                                                Temperature
                                        Large capacitance,high ripple
       Large size        TB       CD91                                  Switching power supplies                 -40+85       10450      220470000
                                                  current
                                             105,High ripple          Specially design for electronic
    For energy saving    PA       CD263                                                                          -25+105      200450       1220
                                           current,3000 long life      ballast and energy-save lamp
                                             105,High ripple
                                                                      Specially design for electronic
    For energy saving    PH      CD263M current,5000 extremely long                                              -25+105      200450       1220
                                                                       ballast and energy-save lamp
                                                     life
                                             105,High ripple
                                                                      Specially design for electronic
    For energy saving    PT      CD263H current,8000 extremely long                                              -25+105      200450       1220
                                                                       ballast and energy-save lamp
                                                     life
        Nonpolar         NP       CD71        Non-Polarized,Stardard          Polarity reversa circuits          -40+85       6.3100      0.16800

        Nonpolar         BP      CD71A        Non-Polarized,lowD.F.          Audio crossover network             -40+85       50100        1100
                                          Non-Polarized excellent
        Nonpolar         BS      CD71S frequency characteristics,high    Used for correction of TV               -40+85          50        110
                                               ripple current
                                          Non-Polarized excellent
                                                                      TV Horizontal Deflection Current
        Nonpolar         BA       CD-9 frequency characteristics,high                                            -25+105        100          10
                                                                                Correction
                                               ripple current
                                        Low leakage,low dissipation
         Special         SF      CD17                                         For Photo flash                    -20+55         330       10370
                                            factor,High stability
                                        Low leakage,low dissipation
         Special         BF      CD17F                                        For Photo flash                    -20+55       330360     2401500
                                            factor,High stability
                                                                          Frequency converter air
         Special         TN      CDIN        High ripple current                                                 -40+85       250450     13003300
                                                                                conditioner
         Special         TS       CD60            Non-Polarized                For Starting AC motor             -20+55       110330      25400
