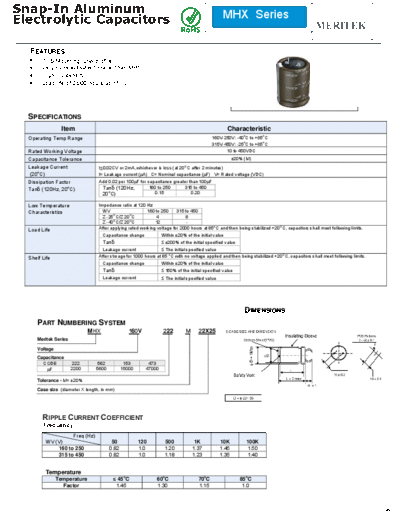

Image preview - the first page of the document



>> Download Meritek [snap-in] MHX Series documenatation <<

Text preview - extract from the document

Snap-In Aluminum                                                                                   MHX Series
Electrolytic Capacitors                                                                                                                        MERITEK

  FEATURES
        PCB Mounting, Low profile
        Very compact size( Smaller than MHS)
        High CV density
        Load life of 2,000 hours at 85o C




  SPECIFICATIONS
                  Item                                                                               Characteristic
  Operating Temp Range                                                                        160V-250V: -40oC to +85oC
                                                                                              315V-450V: -25oC to +85oC
  Rated Working Voltage                                                                             10 to 450VDC
  Capacitance Tolerance
