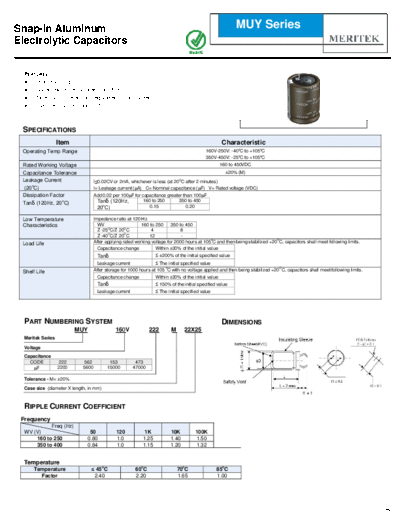

Image preview - the first page of the document



>> Download Meritek [snap-in] MUY Series documenatation <<

Text preview - extract from the document

Snap-In Aluminum                                                                                               MUY Series
Electrolytic Capacitors


  FEATURES
       PCB Mounting
       Super low profile (Smaller than MUX)
       More compact electronic equipment. High CV density

                                             o
       Load life of 2,000 hours at 105 C



 SPECIFICATIONS
                   Item                                                                               Characteristic
 Operating Temp Range                                                                       160V-250V: -40oC to +105oC
                                                                                            350V-450V: -25oC to +105oC
 Rated Working Voltage                                                                                160 to 450VDC
 Capacitance Tolerance
