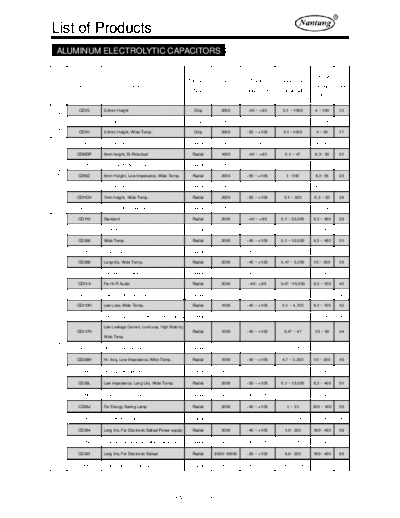

Image preview - the first page of the document
>> Download Nantung Series Table documenatation <<
Text preview - extract from the document
List of Products
AALUMINUM ELECTROLYTIC CAPACITORSS
Voltage
Terminal Load Temp. Capacitance
Series Description Range Page
Type Life(hrs) Range (o C) Range (uF)
(V)
CDVS 5.5mm Height Chip 2000 -40 ~ +85 0.1 ~ 1500 4 ~ 100 13
Super Chip
CDVB Bi-polarized Chip 2000 -40 ~ +85 0.1 ~ 100 6.3 ~ 50 15
CDVH 5.5mm Height, Wide Temp. Chip 2000 -55 ~ +105 0.1 ~1000 4 ~ 50 17
CD50S 5mm height Radial 1000 -40 ~ +85 0.1 ~ 470 4 ~ 50 19
CD50BP 5mm height, Bi-Polarized Radial 1000 -40 ~ +85 0.1 ~ 47 6.3~ 50 21
Super Miniature
CD50H 5mm height, Wide Temp. Radial 1000 -55 ~ +105 0.1 ~220 6.3~ 50 22
CD50Z 5mm Height, Low Impedance, Wide Temp. Radial 2000 -55 ~ +105 1 ~100 6.3~35 23
CD11CX 7mm height Radial 1000 -40 ~ +85 0.1 ~ 470 4 ~ 100 24
CD11CH 7mm height, Wide Temp. Radial 2000 -55 ~ +105 0.1 ~ 220 6.3 ~ 63 26
CD71C 7mm height Bi-polarized Radial 1000 -40 ~ +85 0.1 ~ 100 6.3 ~ 50 28
CD110 Standard Radial 2000 -40 ~ +85 0.1 ~ 22,000 6.3 ~ 450 29
CD110X Standard Radial 2000 -40 ~ +85 0.1 ~ 22,000 6.3 ~ 450 29
CD268 Wide Temp. Radial 2000 -40 ~ +105 0.1 ~ 10,000 6.3 ~ 450 31
CD265 Wide Temp. Radial 1000 -40 ~ +125 0.47 ~ 1,000 10 ~ 100 33
CD269 Long-life, Wide Temp. Radial 2000 -40 ~ +125 0.47 ~ 3,300 10 ~ 350 35
CD11H For Electronic Ballast Radial 2000 -40 ~ +105 1~330 160~ 450 37
CD11A For Hi-Fi Audio Radial 2000 -40~ +85 0.47 ~15,000 6.3 ~ 100 40
CD113 Low Loss (dissipation factor) Radial 1000 -40 ~ +85 0.1 ~ 4,700 6.3 ~ 100 42
CD113H Low Loss, Wide Temp. Radial 1000 -40 ~ +105 0.1 ~ 4,700 6.3 ~ 100 42
CD117 Low Leakage Current, Low Loss, High Stability Radial 1000 -40 ~ +85 0.47 ~ 47 10 ~ 50 44
Low Leakage Current, Low Loss, High Stability,
CD117H Radial 1000 -40 ~ +105 0.47 ~ 47 10 ~ 50 44
Miniature
Wide Temp.
CD288 Hi- freq, Low Impedance Radial 1000 -40 ~ +85 4.7 ~ 3,300 10 ~ 250 45
CD288H Hi- freq, Low Impedance, Wide Temp. Radial 1000 -40 ~ +105 4.7 ~ 3,300 10 ~ 250 45
CD288HL Hi- freq, Low Impedance, long life, Wide Temp. Radial 3000 -55 ~ +105 0.47 ~ 15,000 6.3 ~ 450 47
CD26L Low impedance, Long Life, Wide Temp. Radial 2000 -55 ~ +105 0.1 ~ 15,000 6.3 ~ 400 51
CD26H Long Life, Wide Temp. Radial 5000 -40 ~ +105 1 ~ 10,000 6.3 ~ 450 53
CD26J For Energy Saving Lamp Radial 2000 -40 ~ +105 1 ~ 33 200 ~ 400 55
CD267 For switching adapter Radial 2000 -55 ~ +105 56~ 33,000 6.3 ~ 450 56
CD264 Long life, For Electronic Ballast Power supply Radial 3000 -40 ~ +105 1.0~ 220 160~ 450 59
CD266 Long life, For Electronic Ballast Power supply Radial 5000 -40 ~ +105 1.0~ 220 160~ 450 62
CD261 Long life, For Electronic Ballast Radial 8000~10000 -25 ~ +105 6.8~ 220 160~ 450 65
CDME Wide Temp., Low Impedance, Long Life Radial 5000 -40 ~ +105 0.47 ~ 15000 6.3 ~ 100 68
PAGE 1 OF 2
List of Products
AALUMINUM ELECTROLYTIC CAPACITORSS
Terminal Load Temp. Capacitance Voltage
Series Description Page
Type Life(hrs) Range ( C)
o
Range (uF) Range (V)
CD71 Standard, Bi-polarized Radial 2000 -40 ~ +85 0.1 ~ 4,700 6.3 ~ 160 70
CD71H Bi-polarized, Wide Temp. Radial 1000 -40 ~ +105 0.47 ~ 6,800 6.3 ~ 100 72
CD72 Bi-polarized for Speaker Network Radial 1000 -40 ~ +85 1 ~ 100 50 74
Bi-polarized for Speaker Network, Wide
Miniature
CD72H Radial 1000 -40 ~ +105 1 ~100 50 74
Temp.
CDS Horizontal Deflection Radial 1000 -40~ +85 1 ~15 25 ~ 100 75
CDSH For Horizontal Deflection, Wide Temp. Radial 1000 -40 ~ +105 1 ~15 25 ~ 100 75
CD95 Miniature, Long-life Axial 2000 -40 ~ +85 0.47 ~ 10,000 6.3 ~ 160 76
CD95B Bi-polarized, Long-life Axial 2000 -40 ~ +85 0.1 ~ 4,700 6.3 ~ 160 78
Snap-in
CD292 High Reliability 2000 -40 ~ +85 180 ~82,000 10 ~450 79
(4 pins)
CD293 Standard Snap-in 2000 -40 ~ +85 68 ~ 82,000 10 ~ 450 81
CD294 High Ripple Current, Wide Temp. Snap-in 2000 -40~ +105 39 ~ 47,000 16 ~ 450 83
CD295 Long Life Snap-in 3000 -40~ +85 39 ~ 22,000 16 ~ 450 85
CD296 Long Life, Wide Temp. Snap-in 3000 -40 ~ +105 39 ~ 22,000 10~ 400 87
CD297 High Ripple Current, Long Life Snap-in 5000 -40 ~ +85 68 ~ 22,000 10 ~ 450 90
CD298 Long Life ,Wide Temp. Snap-in 5000 -40 ~ +105 68 ~ 56,000 10~ 450 93
Low Voltage, Large Capacity, Low Loss,
CD92 Screw 1000 -40~ +85 2200 ~ 470,000 10 ~ 100 96
High Ripple Current
Large Size
Low Voltage, Large Capacity, Low Loss,
CD92H Screw 1000 -40 ~ +105 2200 ~ 470,000 10 ~ 100 96
High ripple, Wide Temp.
Long Life, High Ripple Current, Extremely
CD92L Screw 2000 -40~ +85 1000 ~220,000 10 ~ 100 98
Low Impedance
Medium and High Voltage, Large Capacitance,
CD13N Screw 2000 -40 ~ +85 220 ~ 18,000 160 ~ 450 100
High Ripple Current
CD13NH High Ripple Current, Wide Temp. Screw 2000 -40 ~ +105 270 ~ 390,000 160 ~450 101
CD13L Long Life, High Ripple Current Screw 5000 -40 ~ +85 1000 ~18,000 350 ~450 103
CD13HL Long Life, Wide Temp. Screw 5000 -40 ~ +105 1000 ~15,000 350,400,450 105
CD98SK For Car Audio Screw 3000 -40 ~ +85 0.5F~2F 16,20,25 107
CDIN For Air Conditioner Fast-On 2000 -25 ~ +85 220 ~ 2,500 250 ~ 450 108
110 ~330
CD60 For Motor Starting Lug 75000times -20 ~ +70 25 ~500 109
VAC
Photo Flash
CD17S For photo flash Radial -20~ +55 40 ~300 330~360 110
CD17FX For photo flash Lug -20~ +55 150 ~1500 330~360 111
PAGE 2 OF 2
