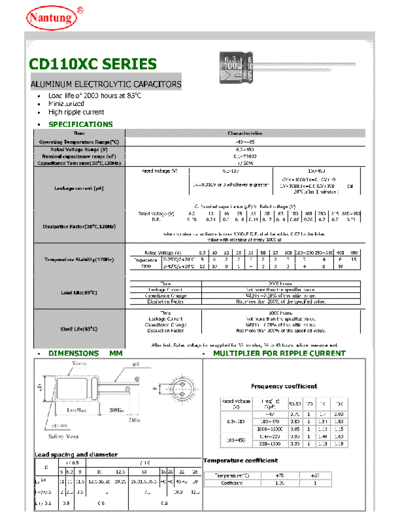

Image preview - the first page of the document



>> Download Nantung [radial thru-hole] CD110XC Series documenatation <<

Text preview - extract from the document

CD110XC SERIES
ALUMINUM ELECTROLYTIC CAPACITORS
            Load life of 2000 hours at 85oC
            Miniaturized
            High ripple current
            SPECIFICATIONS
                        Item                                                                                 Characteristics
                                             o
     Operating Temperature Range( C)                                                                             -40~+85
      Rated Voltage Range (V)                                                                                    6.3~450
   Nominal capacitance range (uF)                                                                               0.1~33000
 Capacitance Tolerance(20oC,120Hz)                                                                               +/-20%
                                                            Rated Voltage (V)                             6.3-100                                      160-450
                                                                                                                                          CV<=1000:I<=0.1CV+40
                                                                                        I<=0.01CV or 3 whichever is greater              CV>1000:I<=0.04CV+100                  (at
              Leakage current (
