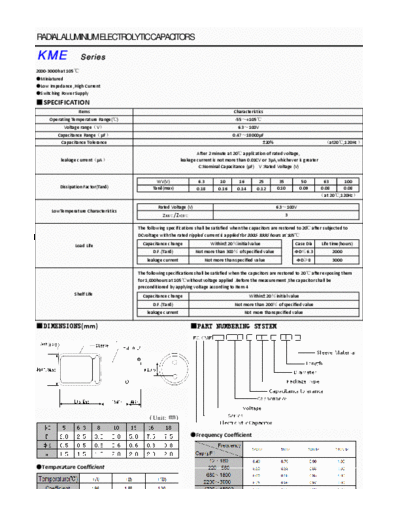

Image preview - the first page of the document



>> Download Nicon KME [radial thru-hole] Series documenatation <<

Text preview - extract from the document

RADIAL ALUMINIUM ELECTROLYTIC CAPACITORS

KME                Series
20003000h at 105
Miniatured
Low Impedance ,High Current
Switching Power Supply

SPECIFICATION
                  Items                                                               Characteristics
     Operating Temperature Range()                                                     55+105
           Voltage rangeV                                                               6.3100V
         Capacitance RangeF                                                          0.4718000F
           Capacitance Tolerance
