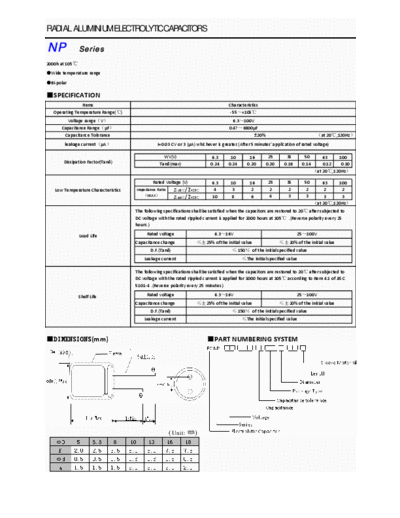

Image preview - the first page of the document



>> Download Nicon NP [radial thru-hole] Series documenatation <<

Text preview - extract from the document

RADIAL ALUMINIUM ELECTROLYTIC CAPACITORS

NP             Series
2000h at 105
Wide temperature range
Bipolar

SPECIFICATION
                 Items                                                                                 Characteristics
   Operating Temperature Range()                                                                        55+105
          Voltage rangeV                                                                                  6.3100V
      Capacitance RangeF                                                                               0.476800F
       Capacitance Tolerance
