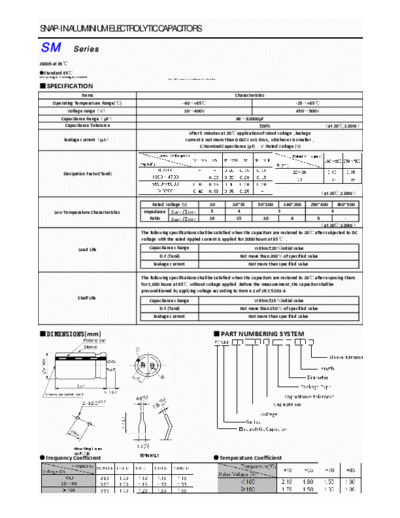

Image preview - the first page of the document



>> Download Nicon SM [snap-in] Series documenatation <<

Text preview - extract from the document

SNAP-IN ALUMINIUM ELECTROLYTIC CAPACITORS

SM              Series
2000h at 85
Standard 85
UR (Surge Voltage) Code
                                                             UR (Surge Voltage) Code
SPECIFICATION
                    Items                                                                                        Characteristics
      Operating Temperature Range()                                     40+85                                                                                  25+85
             Voltage rangeV                                              10400V                                                                                450500V
          Capacitance RangeF                                                                       6882000F
            Capacitance Tolerance
