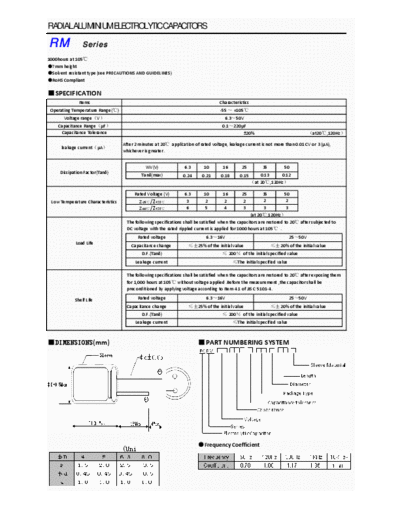

Image preview - the first page of the document
Nicon RM [radial thru-hole] Series


>> Download Nicon RM [radial thru-hole] Series documenatation <<

Text preview - extract from the document
RADIAL ALUMINIUM ELECTROLYTIC CAPACITORS

RM              Series
1000hours at 105
7mm height
Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
RoHS Compliant

SPECIFICATION
              Items                                                                       Characteristics
 Operating Temperature Range()                                                            55  +105
       Voltage rangeV                                                                         6.350V
    Capacitance RangeF                                                                      0.1220F
      Capacitance Tolerance
