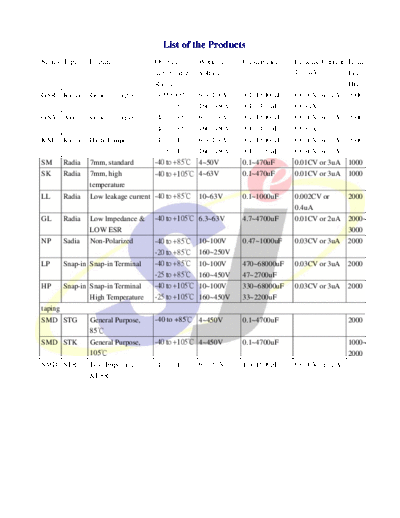

Image preview - the first page of the document

>> Download SC [Radial] 2009 Full documenatation <<

Text preview - extract from the document

List of the Products
Series Type Feature Operation Working Capacitance Leakage Current Load
Temperature Voltage 1(uA) Life
Range Hrs
GSR Radia General purpose -40 to +85 6.3~100V 0.1~15000uF 0.01CV or 3uA 2000
-25 to +85 160~450V 0.47~470uF 0.03uA
GSA Axia General purpose -40 to +85 6.3~100V 0.1~15000uF 0.01CV or 3uA 2000
-40 to +85 160~450V 0.47~470uF 0.03uA
KM Radia High Temperature -40 to +105 6.3~100V 0.1~15000uF 0.01CV or 3uA 2000
-25 to +105 160~450V 0.47~220uF 0.03CV or 3uA
SM Radia 7mm, standard -40 to +85 4~50V 0.1~470uF 0.01CV or 3uA 1000
SK Radia 7mm, high -40 to +105 4~63V 0.1~470uF 0.01CV or 3uA 1000
temperature
LL Radia Low leakage current -40 to +85 10~63V 0.1~1000uF 0.002CV or 2000
0.4uA
GL Radia Low lmpedance & -40 to +105 6.3~63V 4.7~4700uF 0.01CV or 2uA 2000~
LOW ESR 3000
NP Sadia Non-Polarized -40 to +85 10~100V 0.47~1000uF 0.03CV or 3uA 2000
-20 to +85 160~250V
LP Snap-in Snap-in Terminal -40 to +85 10~100V 470~68000uF 0.03CV or 3uA 2000
-25 to +85 160~450V 47~2700uF
HP Snap-in Snap-in Terminal -40 to +105 10~100V 330~68000uF 0.03CV or 3uA 2000
High Temperature -25 to +105 160~450V 33~2200uF
taping
SMD STG General Purpose, -40 to +85 4~450V 0.1~4700uF 2000
85
SMD STK General Purpose, -40 to +105 4~450V 0.1~4700uF 1000~
105 2000
SMD STR Low Impedance -40 to +105 6.3~50V 1.0~1500uF 0.01CV or 3uA
&ESR
Application Notes
When you use aluminum electrolytic capacitors, remember the follow:
1. Polarity
Regular electrolytic Capacitor has polarity. Reverse voltage causes short circuit breakage of the capacitor
or leakage of electrolyte. Where the polarity in a circuit sometimes reversed or unknown, a bi-polar
capacitor should be used.

2. Over voltage
Do not apply over voltage continuously. When over voltage is applied to the capacitor, leakage current
increase drastically. Applied working voltage to capacitors should not exceed the rated working voltage of
capacitor.

3. Operating temperature and life
Do not use the capacitor over the max operating temperature. Life time of the capacitor depends on the
temperature. Generally, life time is doubled by decreasing each temperature 10.

4. Vent
It is recommended at least 3 mm of space around the vent. If such space is not provided, the vent will not
operate completely.

5. Ripple current
Do not apply a ripple current exceeding the rated maximum ripple current. Apply too much ripple current
to the capacitor causes great heat generation, invites deterioration of properties of causes breakage.

6. Charge and discharging
Frequent and quick change/discharge generates heat inside the capacitor, causing increase of leakage current,
decrease of capacitance, or breakage occasionally.

7. Storage
When the capacitor is stored for a long time without applying voltage, leakage current tends to increase.
This returns to normal by applying the rated voltage to the capacitor before use.

8. Soldering
Improper soldering may shrink or break the insulating sleeve and /or damage the internal element as
terminals and lead wires conduct heat into the capacitor. Avoid too high a soldering temperature and/or
too long a soldering time.

9. Mechanical stress on the lead wire and the terminal.
Do not apply excessive force to the lead wire and the terminal. Do not move the capacitor after soldering
to the PC board, not carry the PC board by picking up the capacitor. For their strength, refer to JIS C-5141
and C-5102.

10. Warning for cleaning solvent
Aluminum electrolytic capacitors may be damaged by corrosion hydrocarbon solvents. The followings are
some examples for safe and unsafe cleaning solvents. Please let us know in advance solvent name and
conditions for your PCB cleaning.
safe cleaning unsafe cleaning
Xylence 1.1.2-Trichloro-1.2
Ethyl alcohol Carbon tetrachloride
Butyl alcohol chloroform
Methyl alcohol Trichloroethane
Proy1 alcohol Trichloroethylene
Calgonito (detergent) Methylene chloride

11. Sleeve material
The standard sleve material is polyvinyl-chloride. If exposed to xylene, toluene, ect, and then subjected to
high heat, the sleeve may crack. This sleeve is not insulating material.

12. Fcon's Products meet or exceed quality standards specified by JIS-C-5141W and with the reliability
requirements refer to JIS-C-5102.

13. None of ozone depleting chemicals (ODC) under the Montreal Protocol is used in manufacturing process of
Fcon Electronic Industrial CO., Ltd.
GSR Series General Purpose
Feature
Wide CV value range.
Load life 2000hrs at 85
Safety vent construction design.
For detail specifications, please refer to Engineering Bulletin No. E101
Specifications
Item Performance Characteristics
Operating Temperature Range -40 to +85 -25 to +85
Rated voltage Range 6.3 to 100VDC 160 to 450 VDC
Capacitance Range 0.1 to 15000uF 0.47 to 470uF
Capacitance Tolerance
