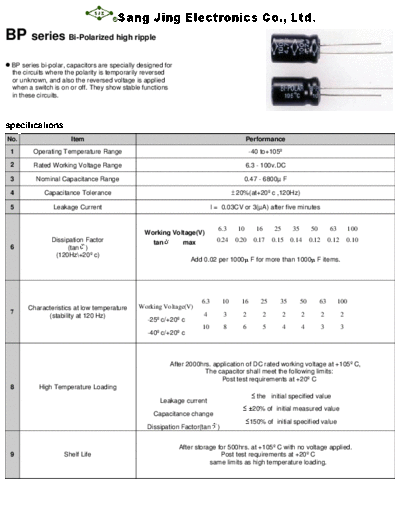

Image preview - the first page of the document
>> Download SJE [bi-polar radial] BP Series documenatation <<Text preview - extract from the document Sang Jing Electronics Co., Ltd.
BP series Bi-Polarized high ripple
BP series bi-polar, capacitors are specially designed for
the circuits where the polarity is temporarily reversed
or unknown, and also the reversed voltage is applied
when a switch is on or off. They show stable functions
in these circuits.
specifications
No. Item Performance
1 Operating Temperature Range -40 to+105
