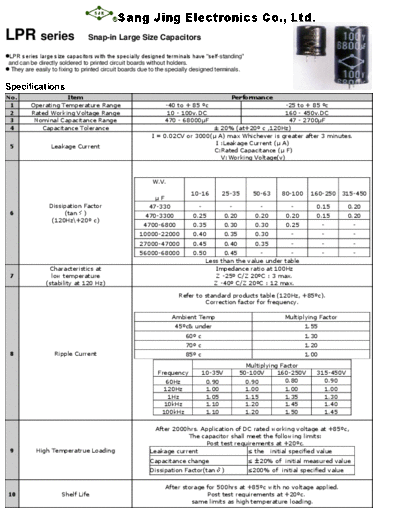

Image preview - the first page of the document
SJE [snap-in] LPR Series


>> Download SJE [snap-in] LPR Series documenatation <<

Text preview - extract from the document
                                           Sang Jing Electronics Co., Ltd.
LPR series                      Snap-in Large Size Capacitors

LPR series large size capacitors with the specially designed terminals have "self-standing"
and can be directly soldered to printed circuit boards without holders.
 They are easily to fixing to printed circuit boards due to the specially designed terminals.


Specifications
No.                  Item                                                                 Performance
 1       Operating Temperature Range                          -40 to + 85
