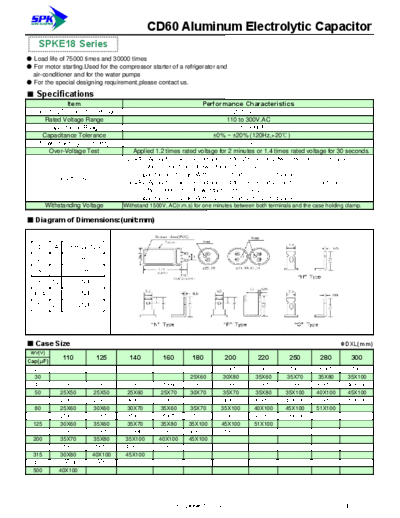

Image preview - the first page of the document



>> Download SPK [U-terminal] SPKE18-CD60 Series documenatation <<

Text preview - extract from the document

                                                CD60 Aluminum Electrolytic Capacitor
    SPKE18 Series
 Load life of 75000 times and 30000 times
 For motor starting.Used for the compressor starter of a refrigerator and
air-conditioner and for the water pumps
 For the special designing requirement,please contact us.
 Specifications
                 Item                                                Performance Characteristics
  Operating Temperature Range                                                  -20 to +70
      Rated Voltage Range                                                    110 to 300V.AC
       Capacitance Range                                                       25 to 500uF
     Capacitance Tolerance
