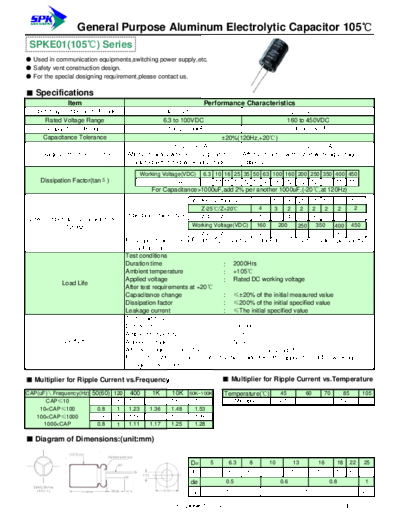

Image preview - the first page of the document



>> Download SPK [radial thru-hole] SPKE01 Series documenatation <<

Text preview - extract from the document

                 General Purpose Aluminum Electrolytic Capacitor 105
 SPKE01(105) Series
 Used in communication equipments,switching power supply,etc.
 Safety vent construction design.
 For the special designing requirement,please contact us.

 Specifications
              Item                                                 Performance Characteristics
  Operating Temperature Range                         -40 to +105                                         -25 to +105
      Rated Voltage Range                            6.3 to 100VDC                                       160 to 450VDC
       Capacitance Range                             0.1 to 22000uF                                       0.47 to 330uF
     Capacitance Tolerance
