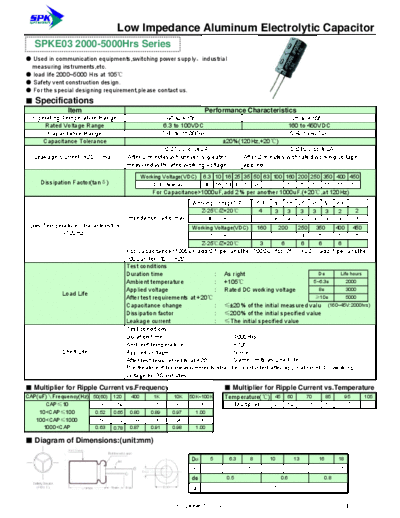

Image preview - the first page of the document



>> Download SPK [radial thru-hole] SPKE03 Series documenatation <<

Text preview - extract from the document

                                Low Impedance Aluminum Electrolytic Capacitor
   SPKE03 2000-5000Hrs Series
 Used in communication equipments,switching power supplyindustrial
measuring instruments,etc.
 load life 2000~5000 Hrs at 105
 Safety vent construction design.
 For the special designing requirement,please contact us.
 Specifications
              Item                                                     Performance Characteristics
  Operating Temperature Range                            -40 to +105                                              -25 to +105
      Rated Voltage Range                                6.3 to 100VDC                                           160 to 450VDC
       Capacitance Range                                0.47 to 15000uF                                           0.47 to 470uF
     Capacitance Tolerance
