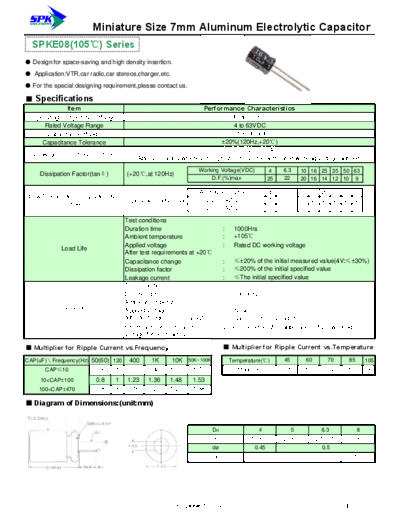

Image preview - the first page of the document



>> Download SPK [radial thru-hole] SPKE08 Series documenatation <<

Text preview - extract from the document

                         Miniature Size 7mm Aluminum Electrolytic Capacitor
  SPKE08(105) Series
 Design for space-saving and high density insertion.
 Application:VTR,car radio,car stereos,charger,etc.
 For the special designing requirement,please contact us.

 Specifications
              Item                                               Performance Characteristics
  Operating Temperature Range                                             -40 to +105
      Rated Voltage Range                                                  4 to 63VDC
       Capacitance Range                                                   0.1 to 470uF
     Capacitance Tolerance
