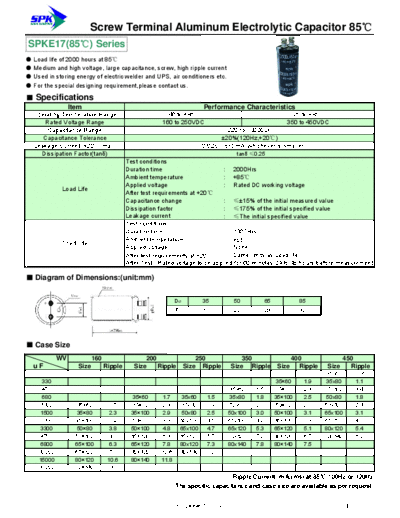

Image preview - the first page of the document



>> Download SPK [screw-terminal] SPKE17 Series documenatation <<

Text preview - extract from the document

                          Screw Terminal Aluminum Electrolytic Capacitor 85
SPKE17(85) Series
 Load life of 2000 hours at 85
 Medium and high voltage, large capacitance, screw, high ripple current
 Used in storing energy of electric welder and UPS, air conditioners etc.
 For the special designing requirement,please contact us.

 Specifications
                 Item                                                     Performance Characteristics
  Operating Temperature Range                           -40 to +85                                        -25 to +85
      Rated Voltage Range                              160 to 250VDC                                     350 to 450VDC
       Capacitance Range                                                      220 to 18000uF
     Capacitance Tolerance
