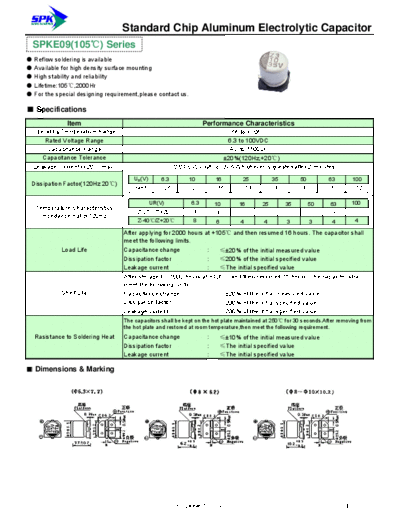

Image preview - the first page of the document



>> Download SPK [smd] SPKE09 Series documenatation <<

Text preview - extract from the document

                                 Standard Chip Aluminum Electrolytic Capacitor
  SPKE09(105) Series
 Reflow soldering is available
 Available for high density surface mounting
 High stability and reliability
 Lifetime:105,2000Hr
 For the special designing requirement,please contact us.

 Specifications
              Item                                                  Performance Characteristics
  Operating Temperature Range                                             -55 to +105
      Rated Voltage Range                                                 6.3 to 100VDC
       Capacitance Range                                                  4.7 to 1500uF
     Capacitance Tolerance
