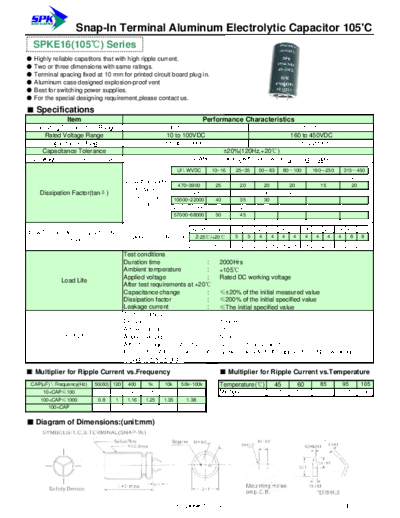

Image preview - the first page of the document



>> Download SPK [snap-in] SPKE16 Series documenatation <<

Text preview - extract from the document

                  Snap-In Terminal Aluminum Electrolytic Capacitor 105'C
  SPKE16(105) Series
 Highly reliable capatitors that with high ripple current.
 Two or three dimensions with same ratings.
 Terminal spacing fixed at 10 mm for printed circuit board plug in.
 Aluminum case designed explosion-proof vent
 Best for switching power supplies.
 For the special designing requirement,please contact us.
 Specifications
              Item                                                       Performance Characteristics
  Operating Temperature Range                         -40 to +105                                                          -25 to +105
      Rated Voltage Range                             10 to 100VDC                                                        160 to 450VDC
       Capacitance Range                             330 to 68000uF                                                        33 to 2200uF
     Capacitance Tolerance
