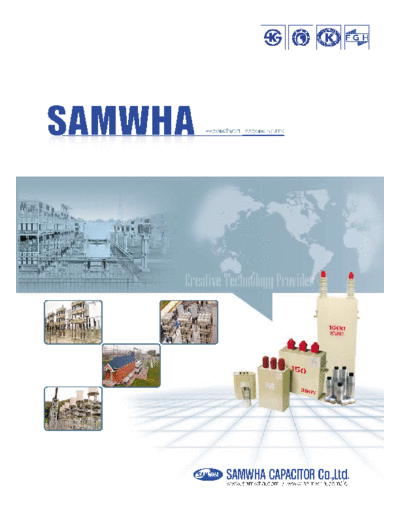

Image preview - the first page of the document



>> Download catalogue_samwha documenatation <<

Text preview - extract from the document

SAMWHA
AHWMAS   www.samwha.com | www.samwha.com/fc




     Creative Technology Provider




                  SAMWHA CAPACITOR Co.,Ltd.
                  www.samwha.com / www.samwha.com/fc
Passion for Challenges
SAMWHA CAPACITOR GROUP
   History
History

 1950 1956.08. OhanIndustryfounded

 1960 1963.10. CompanynamechangedintoSamwhaElectricalIndustry,Inc.
                BeganproductionofHighVoltage&LowVoltagePowerCapacitoratfirstinKorea
       1964.04. BeganMotorCapacitorproductionatfirstinKorea
       1968.08. CompanynamechangedtoSamwhaCapacitor

 1970 1970.01. CertifiedKSMarkforLowVoltagePowerCapacitoratfirstinKorea[C4801No.423]
       1976.06. ListedonStockMarketandopenedInitialPublicOffering
       1977.01. CertifiedKSMarkforHighandExtraHighVoltagePowerCapacitor[C4802No.1524]
       1979.09. CertifiedKSMarkforMotorCapacitor[C4805No.1827]

 1980 1984.12. MovedfactoryfromSeoultoYongininGeanggido
       1985.07.   BeganproductionofMultilayerCeramicCapacitor
                  CertifiedUL[E91154]andCSA[LR60366]forDiscCeramicCapacitor[DCC]
       1986.10.   CertifiedUL[106435]forFilmMotorCapacitor
       1987.02.   EstablishedourownResearch&DevelopmentInstituteinFactory
       1987.07.   CertifiedTUV[R76500]forMicrowaveOvenCapacitor

 1990 1992.02. BeganPTCThermistorproduction
       1999.10. CertifiedISO9003forQualityControlSystem
                [KSA3002-1992/ISO9002-1987]

 2000 2002.07. CertifiedISO9002forQualityControlSystem
                  [KSA9001-2001]
       2004.10.   CertifiedISO14001forEnvironmentManagementSystem
                  [KSA14001-2001]
       2006.10.   CertifiedISO/TS16949forQualityManagementSystem
                  [ISO/TS16949-2002]
 II. Main Products
1. Power Capacitor
1-1. Capacitor Unit
HighVoltagePowerCapacitor
A.SinglePhase
B.ThreePhase
LowVoltagePowerCapacitor
A.OilType
B.DryType

1-2. Capacitor Bank
CapacitorBank
A.CapacitorBank
B.HarmonicFilterBank
CapacitorBankType
A.CubicleCapacitorBank
B.Open-rackCapacitorBank
C.PoleMountedCapacitorBank
CapacitorBankProtection
A.NVS[NeutralVoltageSensor]
B.NCT[NeutralCurrentTransformer]

 1-3. SVC [Static Var Compensator]

1-4. Special Capacitor
ACHarmonicFilter
ZeroSequenceFilter(ZSF)
HybridHarmonicFilter(HHF)
L-CComplexHarmonicFilter(LCF)
ActivePowerHarmonicFilter(APF)
IntelligentVarCompensator(IVC)
LowFrequencyInductionFurnaceCapacitor
WaterCoolingCapacitor
SurgeAbsorbingCapacitor
GroundingCapacitor
PulsePowerCapacitor

2. Disc Ceramic Capacitor [DCC]

3. EMI Filter

4. Multilayer Ceramic Capacitor [MLCC]
                  II. Contents
1. Capacitor                                       4
  1-1. High Voltage Power Capacitor
SinglePhase
ThreePhase
  1-2. Low Voltage Power Capacitor
OilType
DryType

2. Capacitor Bank                                  19
  2-1. Capacitor Bank [Purpose]
GeneralCapacitorBank
HarmonicFilterCapacitorBank
  2-2. Capacitor Bank Type
CubicleCapacitorBank
Open-rackCapacitorBank
PoleMountedCapacitorBank
  2-3. Capacitor Bank Protection
NVS[NeutralVoltageSensor]
NCT[NeutralCurrentTransformer]

3.SVC                                              26

4.Special Capacitor                                28
  4-1. AC Harmonic Filter
  4-2. Zero Sequence Filter(ZSF)
  4-3. Hybrid Harmonic Filter(HHF)
  4-4. L-C Complex Harmonic Filter(LCF)
  4-5. Active Power Harmonic Filter(APF)
  4-6. Intelligent Var Compensator(IVC)
  4-7. Low Frequency Induction Furnace Capacitor
  4-8. Water Cooling Capacitor
  4-9. Surge Absorbing Capacitor
  4-10. Grounding Capacitor
  4-11. Pulse Power Capacitor

5. Reactor                                         47
  5-1. Series Reactor
  5-2. Discharging Coil

6.Appendix                                         56
  6-1. Capacity Calculation
  6-2. Tips for Handling Capacitor
  6-3. Maintenance
  6-4. Certificate and Test Report
  6-5. Order Form
               Samwha
1. Capacitor




                                     Creative TEchnology Provider

                                           1. Capacitor
                    Application
                 ThecapacitorsaredesignedforpowerfactorcorrectionandHarmonicfiltrationinpowernetwork.
                 Theyareall-filmdielectricandimpregnatedwithanenvironmentallyfriendly,Non-PCBbiodegradable
                 insulatingoil.
                 Inadditioneachcapacitorisprovidedwithaninternaldischargeresistor.
                 AllSAMWHAcapacitorscomplywithmostnationalandinternationalcapacitorstandards.
                 Capacitorbenefitsto
