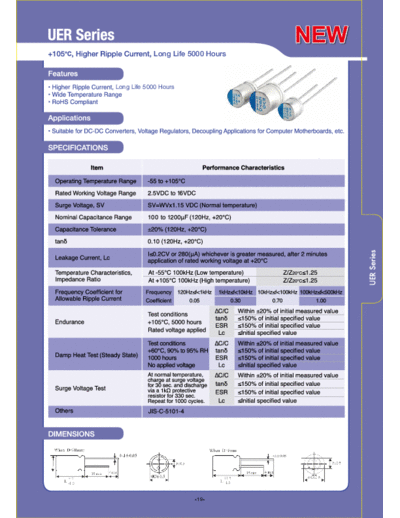

Image preview - the first page of the document
Samxon.X-CON [polymer thru-hole] UER Series


>> Download Samxon.X-CON [polymer thru-hole] UER Series documenatation <<

Text preview - extract from the document
                                   NEW
            Long Life 5000 Hours



Long Life 5000 Hours




                       19
                                                                                                         NEW
                                               Long Life 5000 Hours



      RV    Code           2.5(0E)             4(0G)      6.3(0J)            10(1A)          16(1C)

    100      107                                            E06                          E05, E07, E08
    220      227
    270      277
    330      337
    470      477             E08
    560      567                               E08
    820      827
    1000     108                                                                              G1B
    1200     128                                                              G1B



Size Code         E05            E06            E07         E08               E11                                      G1B
