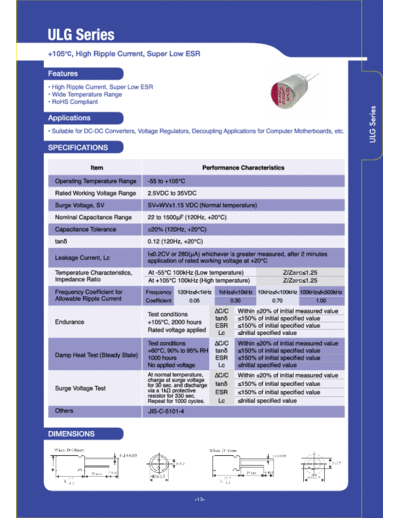

Image preview - the first page of the document



>> Download Samxon.X-CON [polymer thru-hole] ULG Series documenatation <<

Text preview - extract from the document

13
                                                                                                               U
  RV
       Code 2.5(0E) 4(0G) 6.3(0J) 10(1A) 16(1C) 20(1D) 25(1E) 35(1V)

 22    226                                                     E08
 33    336                                             E08
                                                                       NEW
 47    476
                                                                       NEW
100    107                                                                 G1B
150    157                                             G1B
180    187
                                                             NEW       NEW
220    227                                                     G1B         G1B
270    277
                                                                       NEW
330    337                                      G1B                        G1B
390    397
470    477                              G1B
560    567
680    687                      G1B
820    827            G1B
1500   158     G1B




                                                                                                               Leakage
                                                                                   Rated Ripple
 Rated    Rated                                                      (max)                        Tangent of   Current
                       Case       Size                                               Current
Voltage Capacitance                            Part Number         100kHz to                      Loss Angle
                       Size       Code                                           100kHz (mArms)
  (V)                                                               300kHz                         (%max)      After 2
                                                                                     at 105
                                                                    at 20                                      minutes
 2.5         680      8x11.5                                           10            5230            12         340
 2.5         1500     10x12.5     G1B         ULG158M0EG1B            8              5500            12            750
  4          560      8x11.5                                          10             5230            12            448
  4          820      10x12.5     G1B     ULG827M0GG1B                8              5500            12            656
 6.3         390      8x11.5                                          12             4770            12            491
 6.3         680      10x12.5     G1B         ULG687M0JG1B            10             5500            12            857
  10         270      8x11.5                                          14             4420            12            540
  10         470      10x12.5     G1B         ULG477M1AG1B            12             5300            12            940
  16         180      8x11.5                                          16             4360            12            576
  16         330      10x12.5     G1B     ULG337M1CG1B                14             5050            12            1056
  20          33       6.3x8      E08         ULG336M1DE08            45             1880            12            280
  20          47       8x8                                            42             1952            12            280
  20         100      8x11.5                                          35             2670            12            400
  20         150      10x12.5     G1B         ULG157M1DG1B            35             2672            12            600
  25          22       6.3x8      E08         ULG226M1EE08            55             1700            12            280
  25          33       8x8                                            50             1870            12            280
  25          47       8x8                                            45             1940            12            280
  25         100      8x11.5                                          40             2500            12            500
  25         220      10x12.5     G1B         ULG227M1EG1B            35             3100            12            1100
  35          47       8x8                                            90             1500            12            329
  35         100      10x12.5     G1B         ULG107M1VG1B            65             1870            12            700
  35         220      10x12.5     G1B         ULG227M1VG1B            55             2450            12            1540
  35         330      10x12.5     G1B         ULG337M1VG1B            45             2700            12            2310
