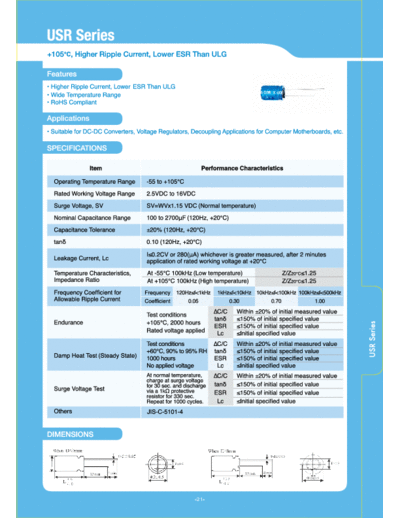

Image preview - the first page of the document
![Samxon.X-CON [polymer thru-hole] USR Series](/pics/5c2dd3884f84c.gif)
>> Download Samxon.X-CON [polymer thru-hole] USR Series documenatation <<
Text preview - extract from the document
21
U
Leakage
Rated Ripple
Rated Rated (max) Tangent of Current
Case Size Current
Voltage Capacitance Part Number 100kHz to Loss Angle
Size Code 100kHz (mArms)
(V) 300kHz (%max) After 2
at 105
at 20 minutes
2.5 470 5x9 D09 USR477M0ED09 7 4180 10 280
2.5 560 5x8 D08 USR567M0ED08 7 4180 10 280
2.5 560 5x9 D09 USR567M0ED09 7 4180 10 280
2.5 560 8x8 7 6100 10 280
2.5 820 6.3x8 E08 USR827M0EE08 7 5600 10 410
2.5 820 8x8 7 6100 10 410
2.5 820 8x11.5 7 6100 10 410
2.5 1000 8x11.5 7 6100 10 500
2.5 1500 8x11.5 7 6100 10 750
2.5 2700 10x12.5 G1B USR278M0EG1B 8 5560 10 1350
4 270 6.3x8 E08 USR277M0GE08 12 3200 10 280
4 560 6.3x8 E08 USR567M0GE08 7 5600 10 448
4 560 8x8 7 6100 10 448
4 560 8x11.5 7 6100 10 448
4 680 8x8 7 6100 10 544
22
Leakage
Rated Ripple
Rated Rated (max) Tangent of Current
Case Size Current
Voltage Capacitance Part Number 100kHz to Loss Angle
Size Code 100kHz (mArms)
(V) 300kHz (%max) After 2
at 105
at 20 minutes
4 680 8x11.5 7 6100 10 544
4 820 8x8 7 6100 10 656
4 820 8x11.5 7 6100 10 656
4 1000 8x8 7 6100 10 800
4 1000 10x12.5 G1B USR108M0GG1B 7 6640 10 800
4 1200 8x8 7 6100 10 960
4 2700 10x12.5 G1B USR278M0GG1B 8 6900 10 2160
6.3 270 5x7 D07 USR277M0JD07 11 3700 10 340
6.3 330 6.3x8 E08 USR337M0JE08 10 4500 10 416
6.3 330 8x8 8 5700 10 416
6.3 390 8x8 8 5700 10 491
6.3 470 8x8 8 5700 10 592
6.3 470 8x11.5 7 6100 10 592
6.3 560 8x8 8 5700 10 706
6.3 680 10x12.5 G1B USR687M0JG1B 7 6640 10 857
6.3 820 8x8 7 6100 10 1033
6.3 820 8x11.5 7 6100 10 1033
6.3 820 10x12.5 G1B USR827M0JG1B 7 6640 10 1033
6.3 1200 8x11.5 7 6100 10 1512
6.3 1500 10x12.5 G1B USR158M0JG1B 10 5560 10 1890
10 270 8x11.5 11 5100 10 540
10 390 8x11.5 9 6100 10 780
10 470 10x12.5 G1B USR477M1AG1B 8 6100 10 940
10 560 8x8 9 5600 10 1120
10 680 10x12.5 G1B USR687M1AG1B 8 6100 10 1360
10 820 8x11.5 8 6100 10 1640
10 1200 10x12.5 G1B USR128M1AG1B 8 6200 10 2400
16 100 6.3x11 E11 USR107M1CE11 24 2820 10 320
16 180 8x11.5 13 5000 10 576
16 220 6.3x11 E11 USR227M1CE11 20 3100 10 704
16 220 8x8 13 4300 10 704
16 220 8x11.5 13 5000 10 704
16 270 8x8 13 4300 10 864
16 270 8x11.5 13 5000 10 864
16 330 8x8 13 4300 10 1056
16 330 10x12.5 G1B USR377M1CG1B 10 6100 10 1056
16 470 8x11.5 11 5100 10 1504
16 470 10x12.5 G1B USR477M1CG1B 10 6100 10 1504
16 680 10x12.5 G1B USR687M1CG1B 10 6100 10 2176
16 820 10x12.5 G1B USR827M1CG1B 10 6100 10 2624
16 1000 10x12.5 G1B USR108M1CG1B 10 6100 10 3200
23
