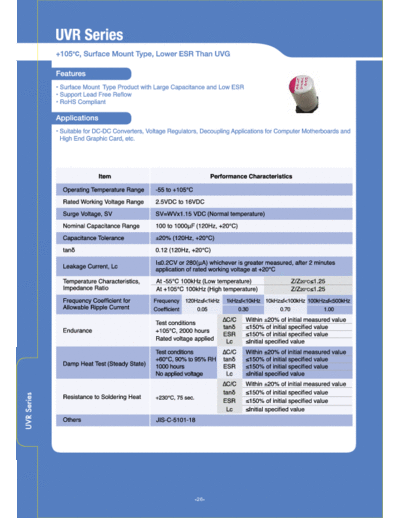

Image preview - the first page of the document



>> Download Samxon.X-CON [polymer smd] UVR Series documenatation <<

Text preview - extract from the document

26
                                                                                                                            U
Case Size Table
 5




       RV      Code         2.5(0E)      4(0G)      6.3(0J)         10(1A)          16(1C)
                                                                                NEW
      100       107                                      E06                          E06
                                                   NEW             NEW
      150       157                                      E06             E06
      180       187
                                                   NEW
      220       270                                      E06
                                                                                NEW
      270       277
                                                  NEW
      330       337              E06      E06           E06, E08
                           NEW
      390       397              E06
                                                                                NEW
      470       477
                          NEW
      560       567
      680       687
                           NEW
      820       827
     1000       108




                                                                                               Rated Ripple
  Rated       Rated                                                                                           Tangent of Leakage Current
                                Case   Size                                100kHz to             Current
 Voltage    Capacitance                          Part Number                                                  Loss Angle
                                Size   Code                                 300kHz           100kHz (mArms)
   (V)                                                                                                         (%max)     After 2 minutes
                                                                            at 20                at 105
     2.5       330          6.3x6      E06      UVR337M0EE06                   17                2900            12             280
     2.5       390          6.3x6      E06      UVR397M0EE06                   17                3390            12             280
     2.5       560          6.3x6      E06      UVR567M0EE06                   16                3500            12             280
     2.5       560          8x10.2                                             12                4210            12             280
     2.5       680           8x12                                              10                5020            12             340
     2.5       820          8x10.2                                             12                4210            12             410
     2.5       1000           8x8                                              12                4260            12             500
      4         330          6.3x6     E06      UVR337M0GE06                   17                2900            12             280
      4         560          8x12                                              13                4520            12             448
     6.3        100          6.3x6     E06      UVR107M0JE06                   50                1620            12             280
     6.3        150          6.3x6     E06      UVR157M0JE06                   50                1620            12             280
     6.3        220          6.3x6     E06      UVR227M0JE06                   26                2450            12             280
     6.3        330          6.3x6     E06      UVR337M0JE06                   25                2200            12             416
     6.3        330          6.3x8     E08      UVR337M0JE08                   15                2700            12             416
     6.3        470          8x12                                              12                4780            12             592
     6.3        820          8x12                                              12                4260            12             1033
     10         150          6.3x6     E06      UVR157M1AE06                   27                2320            12              300
     10         330          8x12                                              14                4390            12              660
     16         100          6.3x6     E06      UVR107M1CE06                   25                2700            12              320
     16         180          8x12                                              16                4040            12              576
     16         270          8x12                                              13                5200            12              864
     16         470          8x12                                              14                4040            12             1504




                                                                          27
