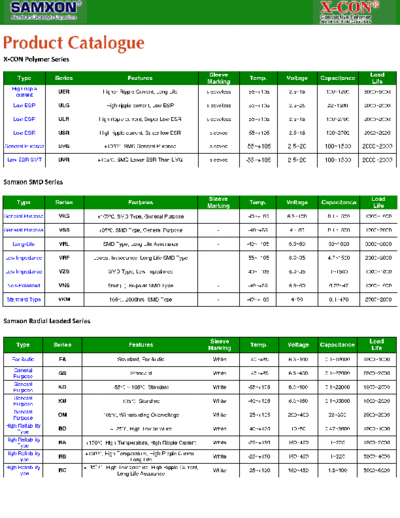

Image preview - the first page of the document
>> Download Samxon Series Table documenatation <<
Text preview - extract from the document
X-CON Polymer Series
Sleeve Load
Type Series Features Temp. Voltage Capacitance
Marking Life
High ripple
UER Higher Ripple Current, Long Life sleeveless -55~+105 2.5~16 100~1200 5000~5000
current
Low ESR ULG High ripple current, Low ESR sleeveless -55~+105 2.5~25 22~1500 2000~2000
Low ESR ULR High ripple current, Super Low ESR sleeveless -55~+105 2.5~16 100~2700 2000~2000
Low ESR USR High ripple current, Super low ESR sleeved -55~+105 2.5~16 100~2700 2000~2000
General Purpose UVG +105, SMD General Purpose sleeved -55~+105 2.5~20 100~1500 2000~2000
Low ESR SMT UVR +105, SMD Lower ESR Than UVG sleeved -55~+105 2.5~20 100~1500 2000~2000
Samxon SMD Series
Sleeve Load
Type Series Features Temp. Voltage Capacitance
Marking Life
General Purpose VKS +105, SMD Type, General Purpose - -40~+105 6.3~100 0.1~1500 1000~1000
General Purpose VSS +85, SMD Type, General Purpose - -40~+85 4~100 0.1~1500 1000~2000
Long-Life VRL SMD Type, Long Life Assurance - -40~+105 6.3~50 33~1000 3000~3000
Low Impedance VRF Lowest Impedance, Long Life SMD Type - -55~+105 6.3~35 4.7~1500 2000~3000
Low Impedance VZS SMD Type, Low Impedance - -40~+105 6.3~35 1~1500 1000~1000
Non-Polarized VNS 5mm(L), Bi-polar SMD Type - -40~+85 6.3~50 0.22~47 1000~1000
Standard Type VKM 105, 2000hrs, SMD Type - -40~+105 4~50 0.1~470 2000~2000
Samxon Radial Leaded Series
Sleeve Load
Type Series Features Temp. Voltage Capacitance
Marking Life
For Audio FA Standard, For Audio White -40~+85 6.3~100 0.1~10000 1000~1000
General
GS Standard White -40~+85 6.3~450 0.1~22000 2000~2000
Purpose
General
KG -55 ~ 105, Standard White -55~+105 6.3~100 0.1~22000 1000~2000
Purpose
General
KM 105, Standard White -40~+105 6.3~450 0.1~33000 1000~2000
Purpose
General
OM 105, Withstanding Overvoltage White -25~+105 200~400 22~330 2000~2000
Purpose
High Reliability
BD +125, High Temperature White -40~+125 10~50 0.47~3900 1000~1000
Type
High Reliability
RA +130, High Temperature, High Ripple Current White -25~+130 160~450 1~220 1000~2000
Type
High Reliability +130, High Temperature, High Ripple Current,
RB White -25~+130 160~450 1~220 3000~4000
Type Long Life
High Reliability +130, High Temperature, High Ripple Current,
RC White -25~+130 160~450 1.5~100 5000~6000
Type Long Life Assurance
Sleeve Load
Type Series Features Temp. Voltage Capacitance
Marking Life
High Reliability
RD Long Life Assurance, High Ripple Current White -25~+105 160~450 10~330 8000~10000
Type
High Reliability
RE Long Life Assurance White -25~+105 160~450 6.8~220 8000~10000
Type
High Reliability
RH +105, High Ripple Current, Long Life White -40~+105 160~450 6.8~220 10000~12000
Type
High Reliability
RL Long Life Assurance, High Ripple Current White -40~+105 6.3~450 0.1~22000 3000~8000
Type
High Reliability
RR Long Life Assurance, High Ripple Current White -25~+105 160~450 4.7~220 3000~3000
Type
High Reliability
RT Long Life Assurance, High Ripple Current White -25~+105 160~450 4.7~220 5000~5000
Type
Low Impedance
GF +105, High Ripple Current, Low Impedance White -40~+105 6.3~450 2.2~4700 2000~4000
Type
Low Impedance
GK +105, High Ripple Current, Lowest Impedance White -40~+105 6.3~25 100~3900 2000~5000
Type
Low Impedance +105, High Ripple Current, Long Life, Low
GT White -40~+105 6.3~100 15~3900 4000~10000
Type Impedance
Low Impedance
GY +105, Low Impedance, Long Life White -40~+105 6.3~100 0.47~3300 4000~10000
Type
Low Impedance -55 ~ 105, Wide Temperature, High Ripply
RF White -55~+105 6.3~100 22~4700 1000~4000
Type Current
Low Impedance +105, High Ripple Current, Long Life Assurance,
RS White -40~+105 6.3~100 2.2~4700 3000~7000
Type L
Low Impedance +105, High Ripple Current, Low Impedance,
SF White -40~+105 6.3~100 15~3900 3000~6000
Type Long Life
Low Impedance
ZM 5mm(L), 105 , Low Impedance White -40~+105 6.3~35 1~100 1000~1000
Type
Low Impedance
ZS 7mm(L), +105 , Low Impedance Brown -40~+105 6.3~35 6.8~220 1000~1000
Type
Miniature Type KF 5mm(L), 105 White -40~+105 4~50 0.1~330 1000~1000
Miniature Type KS 7mm(L), -40 ~ +105 White -40~+105 6.3~50 0.1~220 1000~1000
Miniature Type SM 5mm(L), Standard White -40~+85 4~50 0.1~330 2000~2000
Miniature Type SS 7(9)mm, High C/V White -40~+85 6.3~50 0.1~470 2000~2000
Non-Polarized
NH +105, Nonpolar White -40~+105 6.3~100 0.47~1000 1000~1000
Type
Non-Polarized
NP Nonpolar Black -40~+85 6.3~100 0.47~6800 1000~1000
Type
Pen Cap KM +105, Pen Cap White -25~+105 200~450 22~270 2000~2000
Pen Cap RW +105, Pen Cap, Long Life Assurance White -25~+105 200~450 22~220 5000~5000
Pen Cap RY +105, Pen Cap, Long Life Assurance -25~+105 200~450 22~220 10000~10000
Samxon Large Can Series
Sleeve Load
Type Series Features Temp. Voltage Capacitance
Marking Life
High Reliability EP Lug/Snap-in Terminal Type, Long Life White -40~+105 10~450 82~47000 5000~5000
Lug/Snap-in Terminal Type, Long Life, Low
High Reliability FP White -40~+105 10~450 100~33000 5000~5000
Impedance
High Reliability GP Lug/Snap-in Terminal Type, Ultra Small Size White -40~+105 160~450 100~3300 2000~2000
High Reliability HP Lug/Snap-in Terminal Type, Wide Temperature White -40~+105 10~500 47~56000 2000~2000
High Reliability KP Lug/Snap-in Terminal Type, Long Life White -40~+105 10~450 47~56000 3000~3000
High Reliability SP Lug/Snap-in Terminal Type, Long Life White -40~+105 160~450 39~2200 7000~7000
Lug/Snap- in Terminal Type, Overvoltage
High Reliability UP White -25~+105 200~450 56~1200 2000~2000
Resistant Design
Lug/Snap-in Terminal Type, Withstanding
High Reliability VP White -40~+105 10~500 39~56000 2000~2000
Vibration
Special Type WB Screw Terminal Type, High Temperature Golden -25~+125 160~400 330~15000 3000~3000
Special Type WF Screw Terminal Type, Long Life Assurance Golden -40~+105 10~450 330~390000 5000~5000
Special Type WH Screw Terminal Type, Long Life Assurance Golden -25~+85 350~500 470~22000 10000~10000
Special Type WI Screw Terminal Type, High Ripple Current Black -25~+85 300~450 390~22000 2000~2000
Special Type WL Screw Terminal Type, Ultra Long Life Assurance Golden -25~+85 350~450 2200~12000 20000~20000
Special Type WR Screw Terminal Type, Standard Golden -40~+85 10~630 100~680000 2000~2000
Special Type WS Screw Terminal Type, Long Life Assurance Golden -40~+105 350~450 90~15000 10000~10000
Special Type WT Screw Terminal Type, Standard Golden -40~+105 10~500 180~680000 2000~2000
Special Type WU Screw Terminal Type, High Capacitance Golden -40~+85 250~450 220~22000 2000~2000
Special Type WX Screw Terminal Type, Long Life Assurance Golden -40~+85 10~550 1000~1.5e+006 5000~5000
Standard Type AP Lug/Snap-in Terminal Type, For Audio White -40~+85 16~100 680~10000 1000~1000
Standard Type DP Lug/Snap-in Terminal Type, Long Life, Low ESR White -40~+85 160~450 47~2200 5000~5000
Standard Type LP Lug/Snap-in Terminal Type, Standard White -40~+85 10~500 56~82000 2000~2000
Lug/Snap-in Terminal Type, Withstanding
Standard Type QP White -40~+85 10~500 56~82000 2000~2000
Vibration
Standard Type TP Lug/Snap-in Terminal Type, Ultra Long Life White -25~+85 200~450 56~2200 10000~10000
